CHAPTER 16
SEPARATION MODEL
OBJECTIVES
• Apply the scientific principles associated with chemical separation processes
• Describe the operation of the separator 600 system
• List the composition of the separator feedstock.
• Draw the separator 600 system
• Identify the simple instruments used to operate the separator system
• Draw each of the control loops in the separator system and list typical set points.
• Operate the separator system
• Troubleshoot problems associated with the operation of the separator system.
REVIEW QUESTIONS
1. List the basic equipment associated with the separation unit.
TIC-600, PIC-600, LIC-601, LIC-610, LIC-620, AT-5, AT-6, Pressure
instruments, Flow instruments.
3. Draw a simple sketch of the separator unit.
4. Draw each control loop associated with the separation unit and explain how each
one works.
5. List the basic steps associated with operating the separation unit.
Action Notes
1. Set PIC-600 to 65 psig and set in AUTO
3. Set LIC-600 to 50% and set in AUTO
5. Set LIC-610 to 50% and set in AUTO
7. Establish flow to Separator-600.
9. Open V-601 D &A and start pump 601
10. Open V-601D & V-620A and start pump 620
11. Open V-600D & V-610A and start pump 610
13. Monitor AT-6 and ensure it is reading between SPC guidelines
6. Identify the common problems associated with separation operation.
Common Separations Problems
• feed composition changes
• unreacted feed
NAME:____________________________ TEST A
DATE:____________________________
CHAPTER SIXTEEN TEST
SEPARATION MODEL
1. What is the operating pressure on the Separator?
a. 50 psig
b. 65 psig
c. 85 psig
d. 100 psig
2. What is the operating percentage on PCV-600?
a. 25%
b. 50%
c. 75%
d. 100%
3. What is the flow rate to the separator?
a. 14 GPM
b. 22 GPM
c. 68 GPM
d. 104.5 GPM
4. What is the operating temperature of the separator?
a. 60ºF
b. 90ºF
c. 120ºF
d. 150ºF
5. Name the two pumps used on the separator?
a. P-202A & B
b. P-208A & B
c. P-600 & 601
d. P-610 & P-620
6. What is the butane specification on AT-5?
a. 8%
b. 99.9%
c. 98.5%
d. 21%
7. What is the butane specification on AT-6?
a. 8%
b. 99.9%
c. 98.5%
d. 21%
8. Tk-610 is used for:
a. Extract
b. Raffinate
c. Octane Booster
d. a & c
9. Tk-620 is used for:
a. Raffinate
b. Extract
c. Butane
d. a & c
10. What is the initial feed pressure to the separator?
a. 65 psig
b. 100 psig
c. 120 psig
d. 130 psig
11. The separator has two different product pumps. What is the flow rates for each
pump?
a. 89.5 GPM & 15 GPM
b. 104 GPM & 98 GPM
c. 45 GPM & 55 GPM
d. 135 GPM & 65 GPM
12. The level on the separator is controlled at?
a. 30%
b. 50%
c. 75%
d. 100%

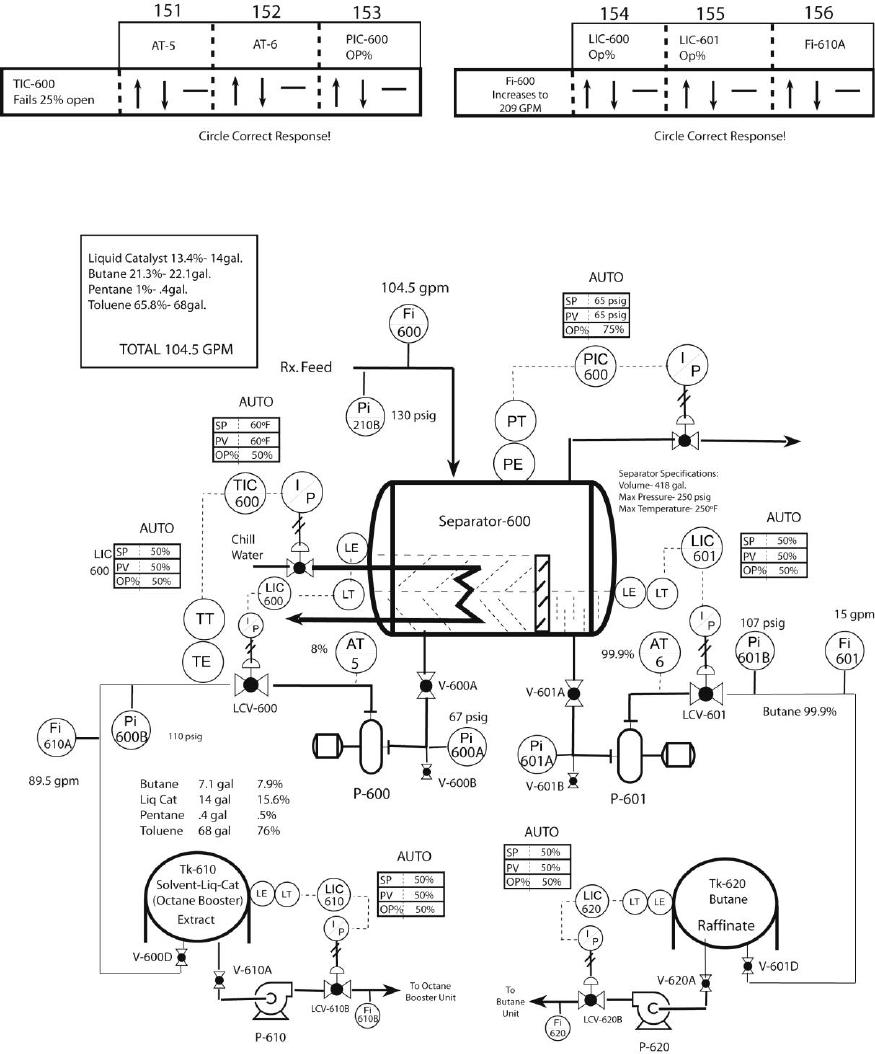

13.
separator
1
2
3
4
5
6

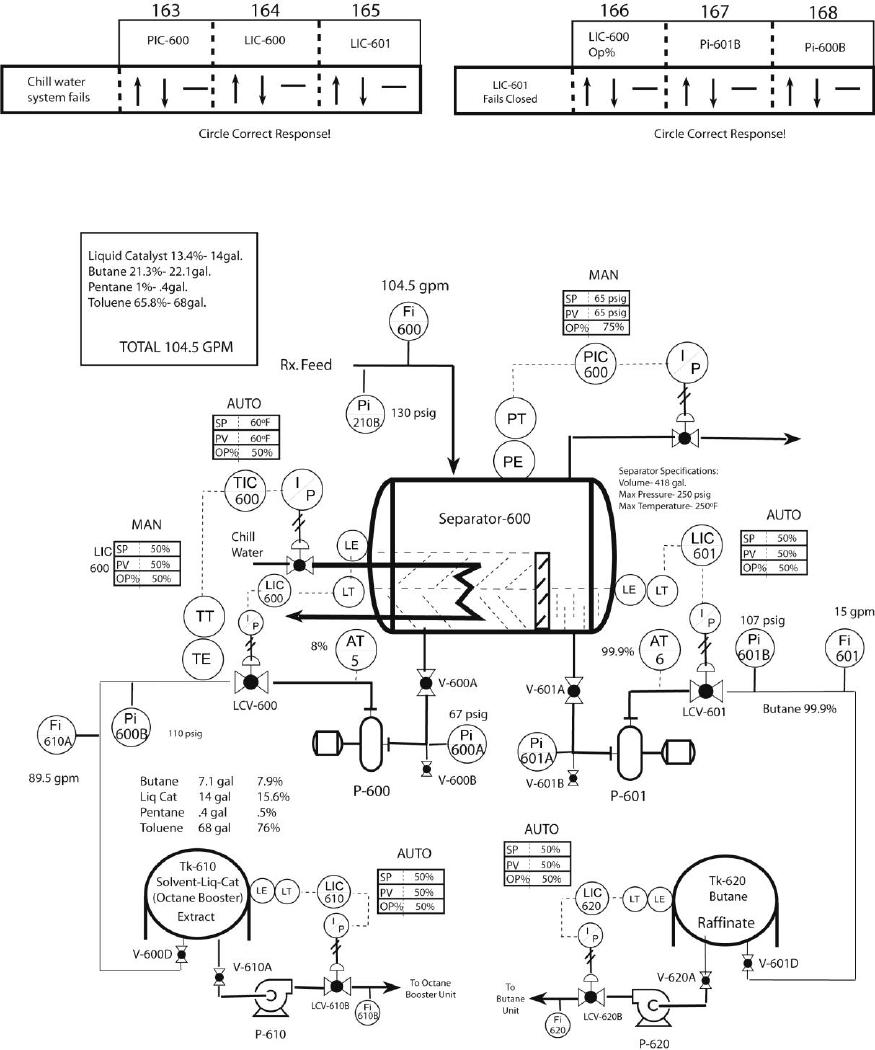

14.
separator
1
2
3
4
5
6

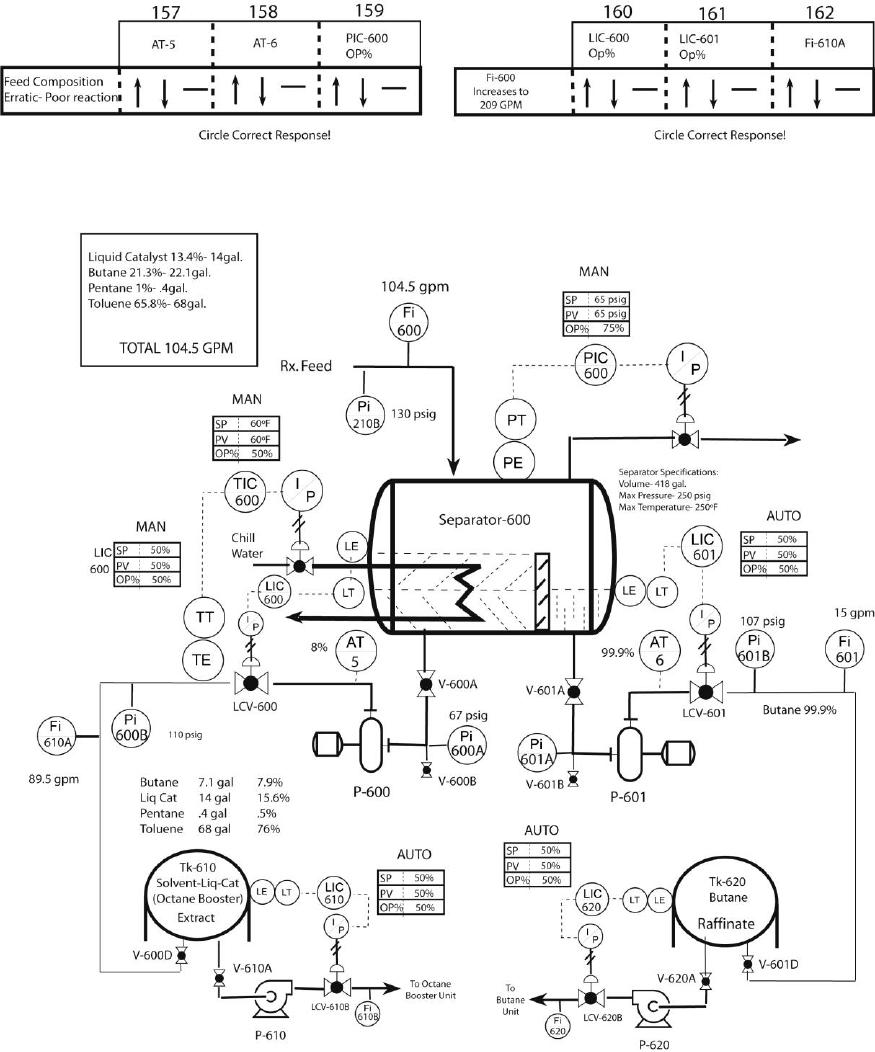

15.
separator
1
2
3
4
5
6
Answer Key CHAPTER 16 TEST A
SEPARATIONS MODEL
