Chapter 16: Engineering Drawings and Symbols

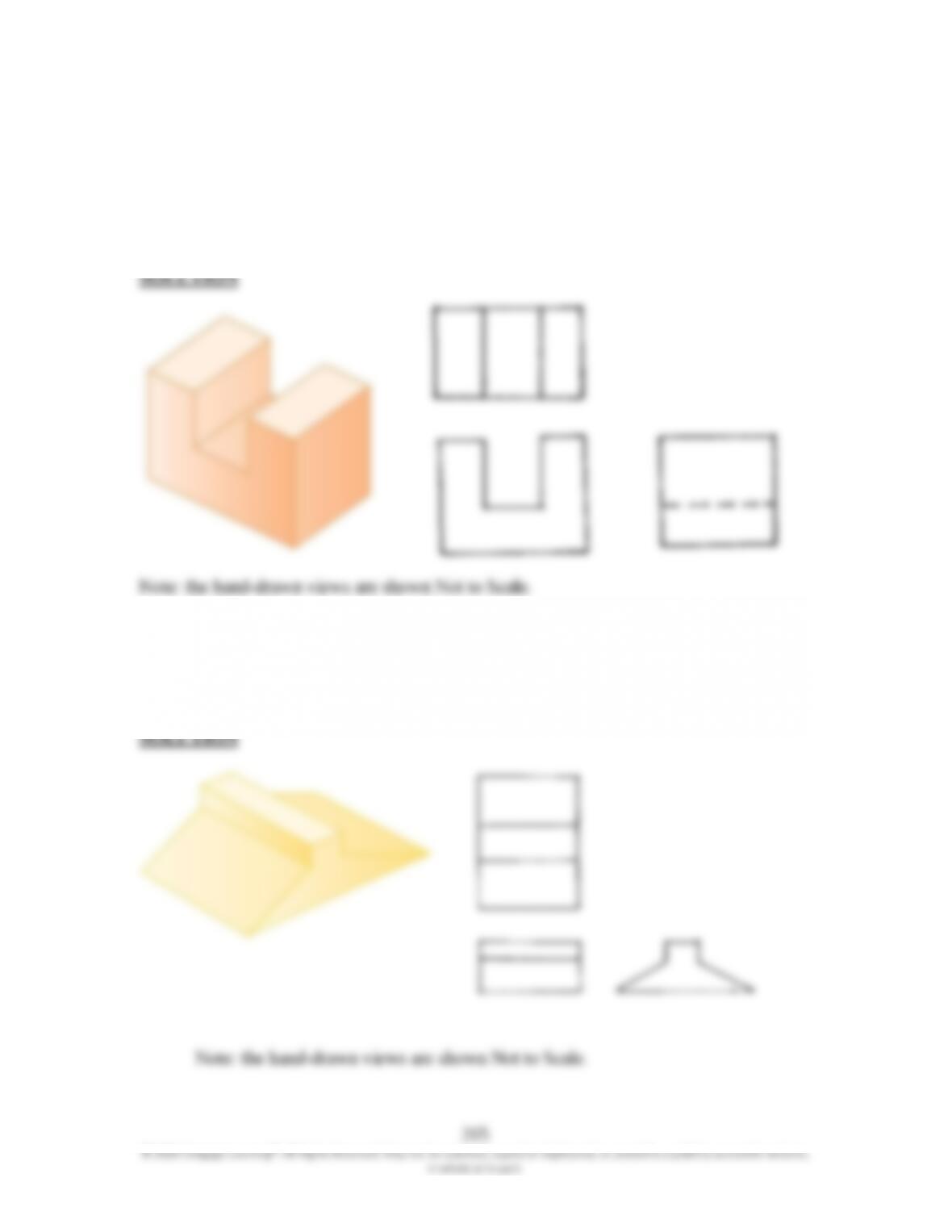

16.1 For Problems 16.1 through 16.19, draw the top, the front, and the right-side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
16.2 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
266

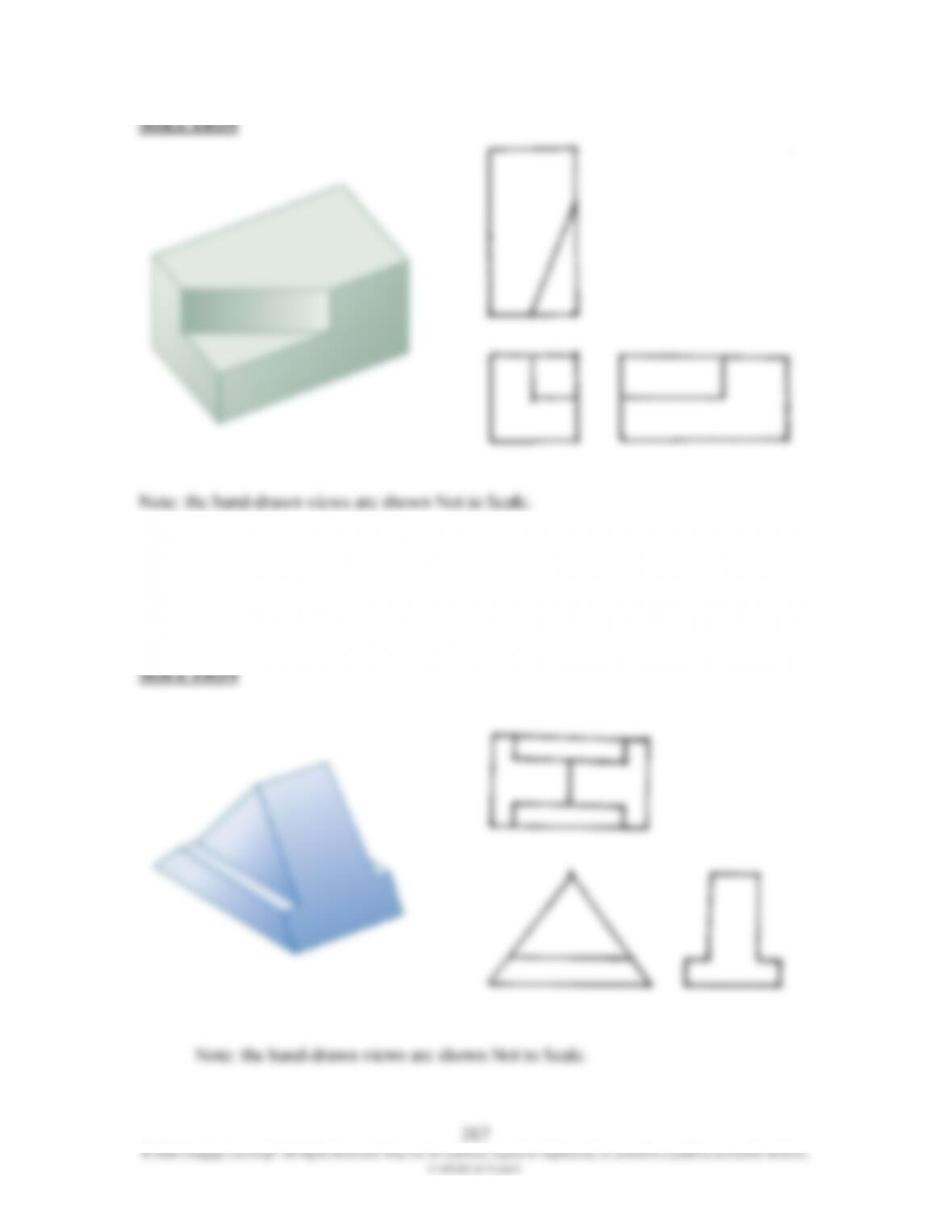

16.3 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
16.4 For problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
267
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
SOLUTION
Note: the hand-drawn views are shown Not to Scale.
16.5 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
268
16.6 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
SOLUTION
16.7 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
SOLUTION
16.8 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
270
16.9 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
SOLUTION
16.10 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
271
SOLUTION
16.11 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
272
SOLUTION
16.12 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
273
SOLUTION
Not to scale. For a short tube.
16.13 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
274
SOLUTION
16.14 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
275
SOLUTION
16.15 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
276
SOLUTION
16.16 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
277
SOLUTION
Note: the hand-drawn views are shown Not to Scale.
16.17 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
278
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
SOLUTION
Note: the hand-drawn views are shown Not to Scale.
16.18 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
279
© 2020 Cengage Learning®. All Rights Reserved. May not be scanned, copied or duplicated, or posted to a publicly accessible website,
in whole or in part.
SOLUTION
Note: the hand-drawn views are shown Not to Scale.
16.19 For Problems 16.1 through 16.19, draw the top, the front, and the right side
orthographic views of the objects shown. Indicate when an object needs only one
or two views to be fully described.
280
16.20 For Problems 16.20 through 16.23, use the cutting planes shown to draw the
sectional views.
SOLUTION
16.21 For Problems 16.20 through 16.23, use the cutting planes shown to draw the
sectional views.
281
SOLUTION
16.22 For Problems 16.20 through 16.23, use the cutting planes shown to draw the
sectional views.
SOLUTION
16.23 For Problems 16.20 through 16.23, use the cutting planes shown to draw the
sectional views.
282
16.24 For Problems 16.24 through 16.28, using the rules discussed in this chapter, show
the dimensions of the views shown.
283
SOLUTION
16.25 For Problems 16.24 through 16.28, using the rules discussed in this chapter, show
the dimensions of the views shown.
SOLUTION
