CHAPTER 8 MULTIVIEWS PROBLEMS

Part 1: Problems 8.1 Through 8.5

Given each object displayed in a glass box with views pro-

jected on to the glass box surfaces, draw the multiviews using

third-angle projection. Each square on the given grid repre-

sents 1 in. (25 mm). Use appropriate size ASME standard

sheet size and sheet blocks for each problem unless otherwise

specified by your instructor.

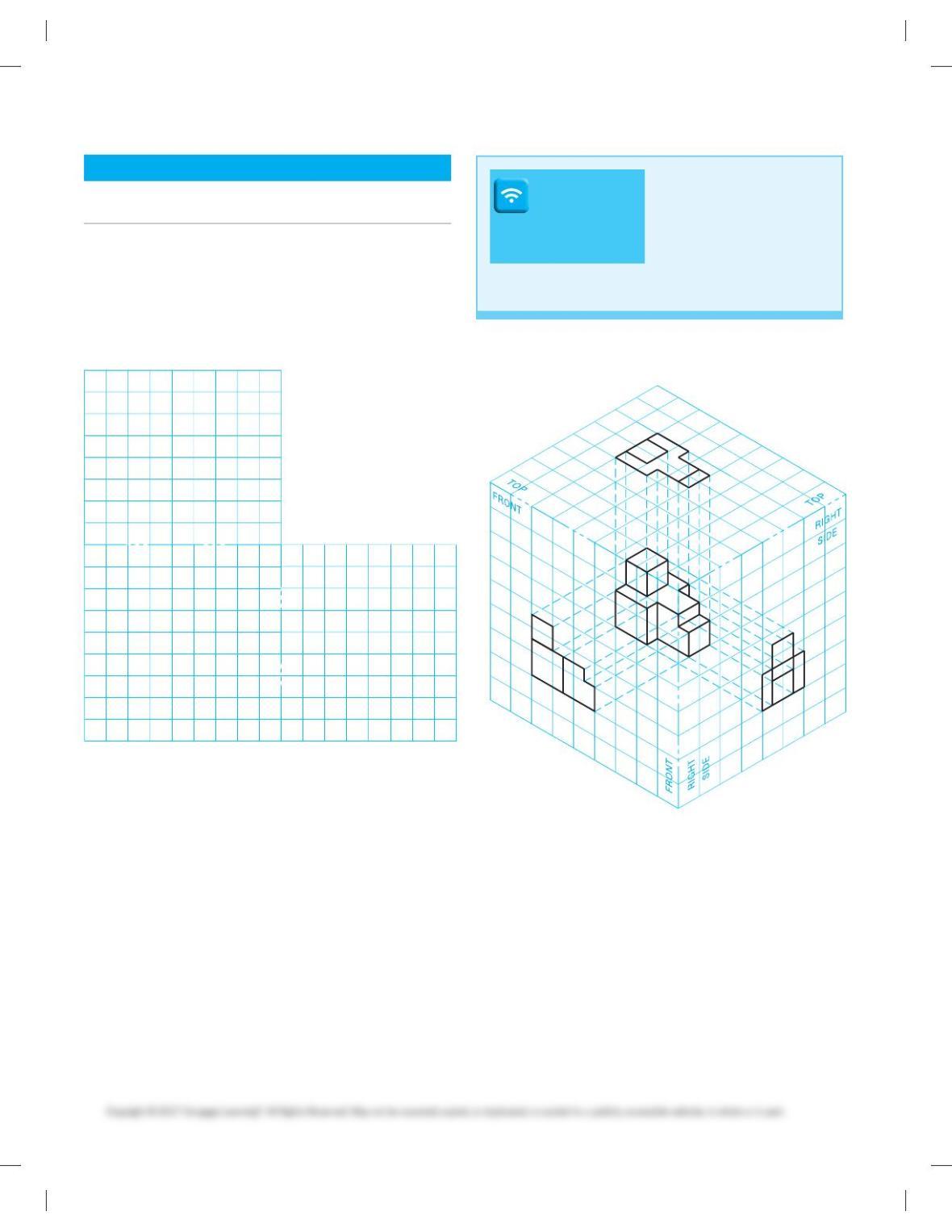

PROBLEM 8.1

FRONT

RIGHT

SIDE

TOP

FRONT

DRAFTING

TEMPLATES

To access CADD template

files with predefined drafting

settings, go to the Student

Companion Website, select

Student Downloads and

Drafting Templates, and then

select the appropriate

template file.

59728_ch08_EOC_ptg01.indd 2 03/02/16 10:24 am

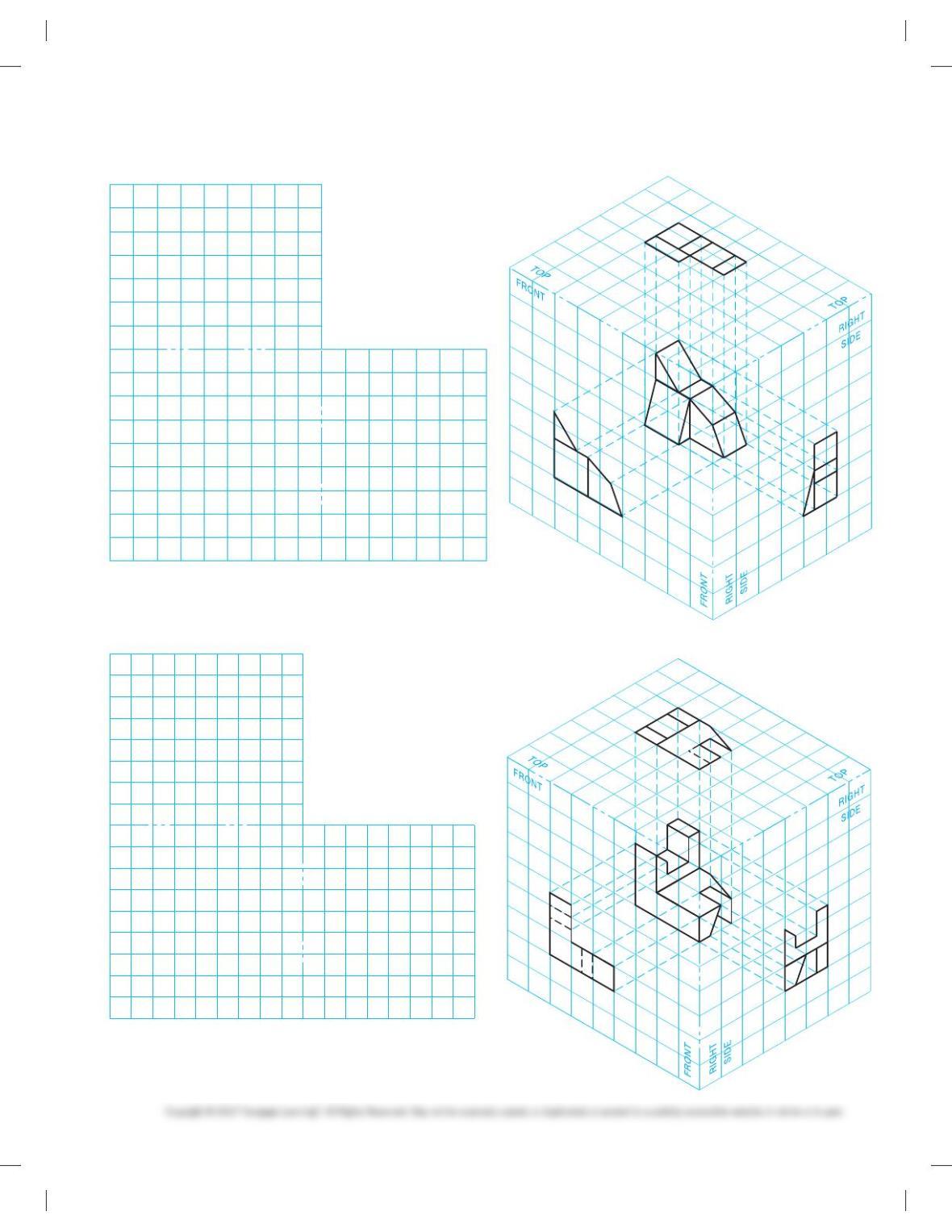

PROBLEM 8.2

FRONT

RIGHT

SIDE

TOP

FRONT

PROBLEM 8.3

FRONT

RIGHT

SIDE

TOP

FRONT

59728_ch08_EOC_ptg01.indd 3 03/02/16 10:24 am

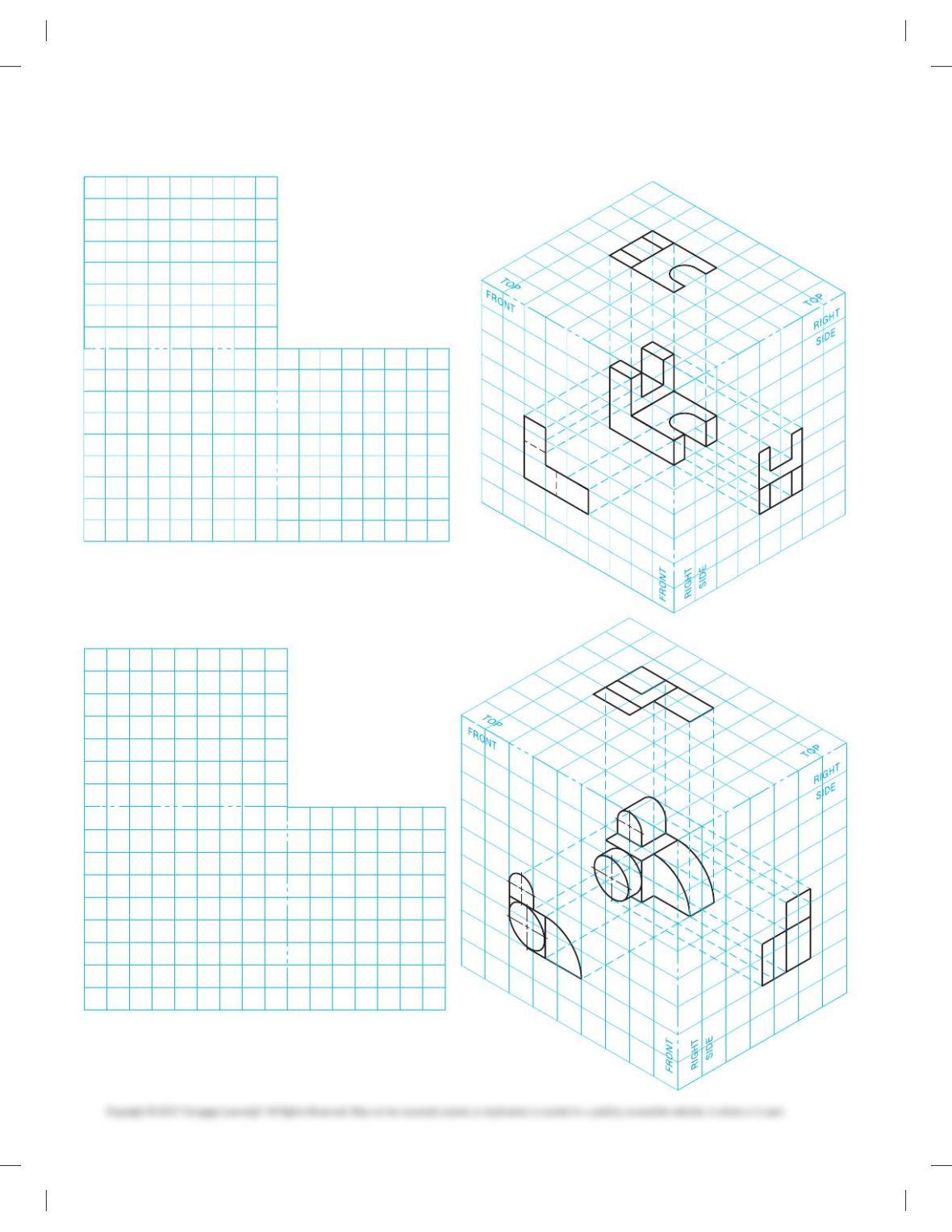

PROBLEM 8.4

FRONT

RIGHT

SIDE

TOP

FRONT

PROBLEM 8.5

FRONT

RIGHT

SIDE

TOP

FRONT

59728_ch08_EOC_ptg01.indd 4 03/02/16 10:24 am

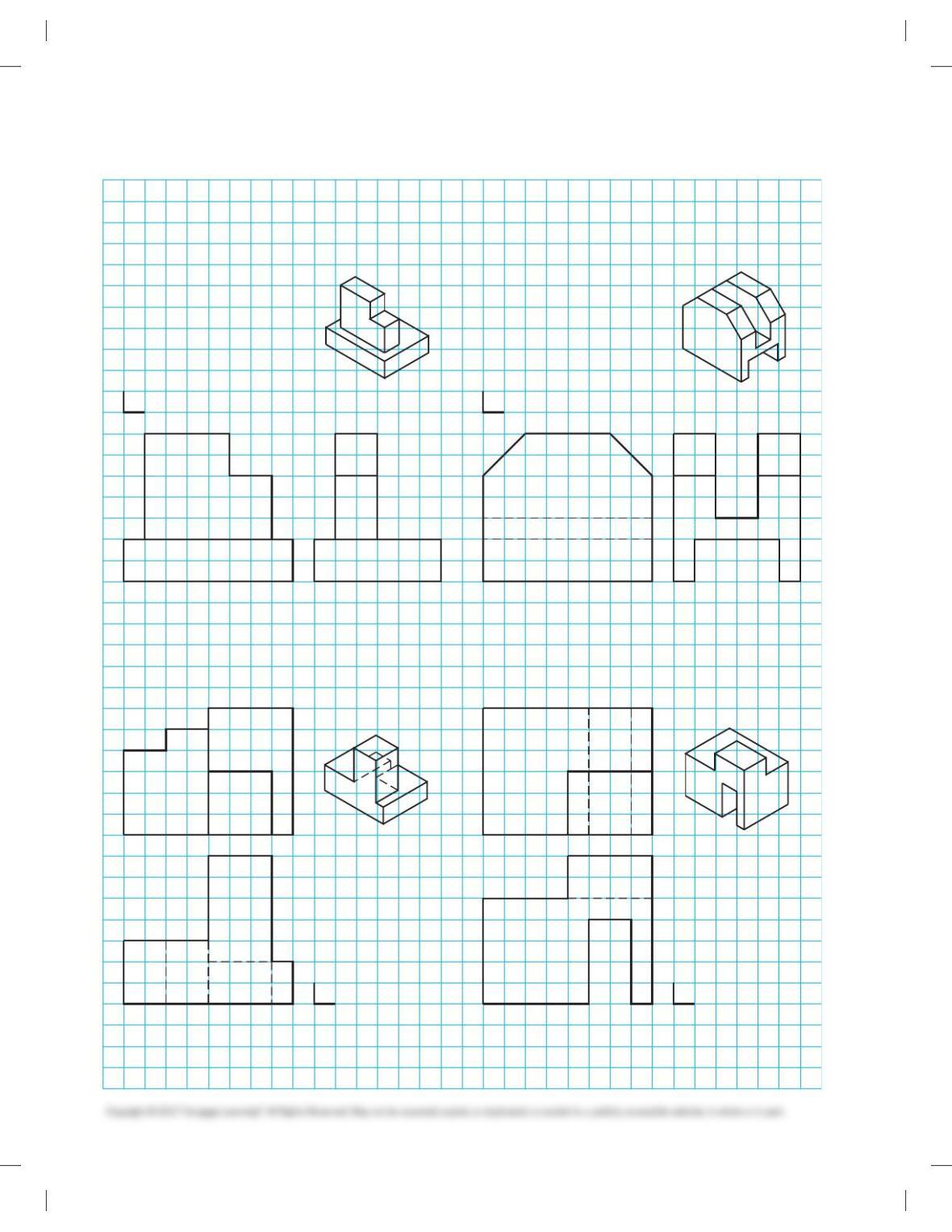

PROBLEM 8.6 PROBLEM 8.8

PROBLEM 8.7 PROBLEM 8.9

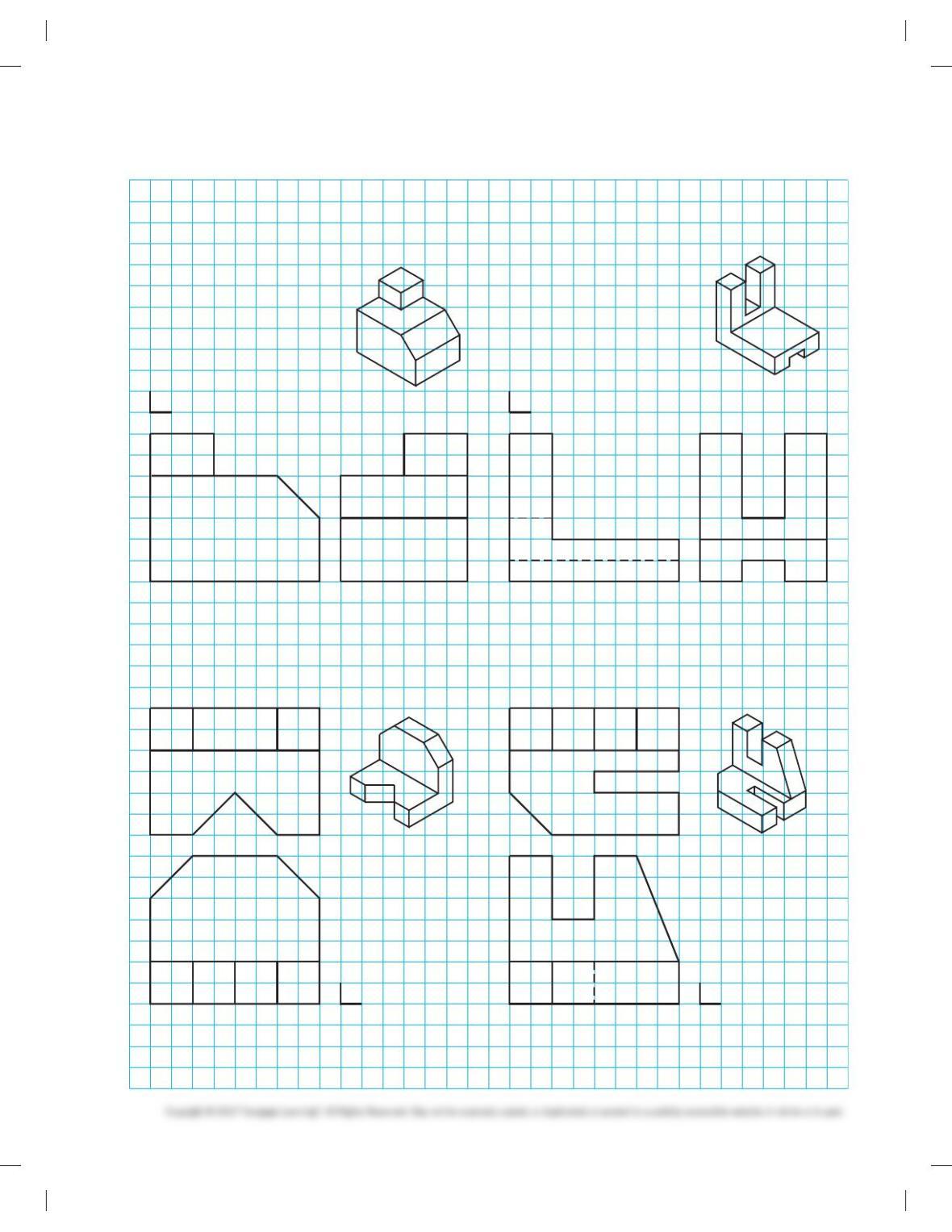

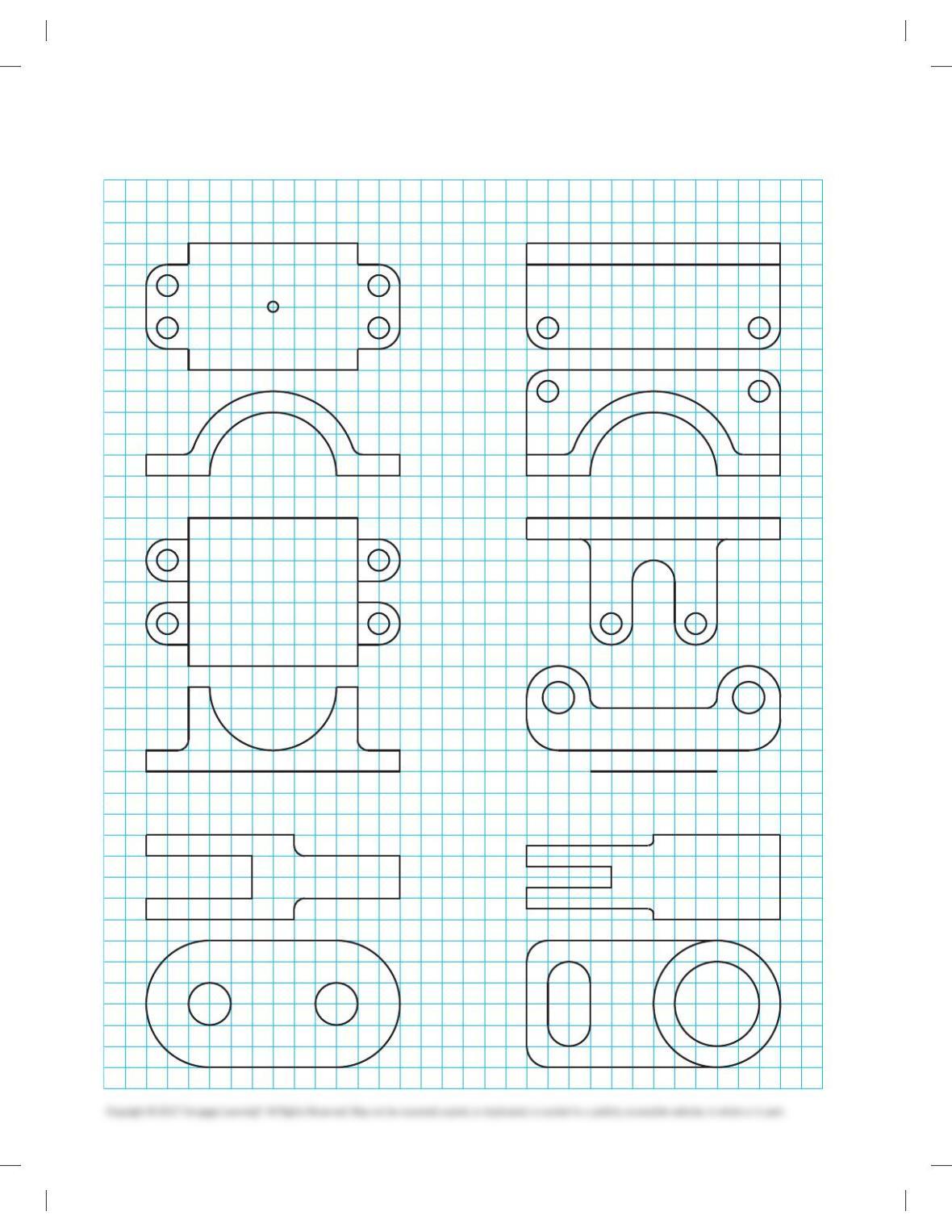

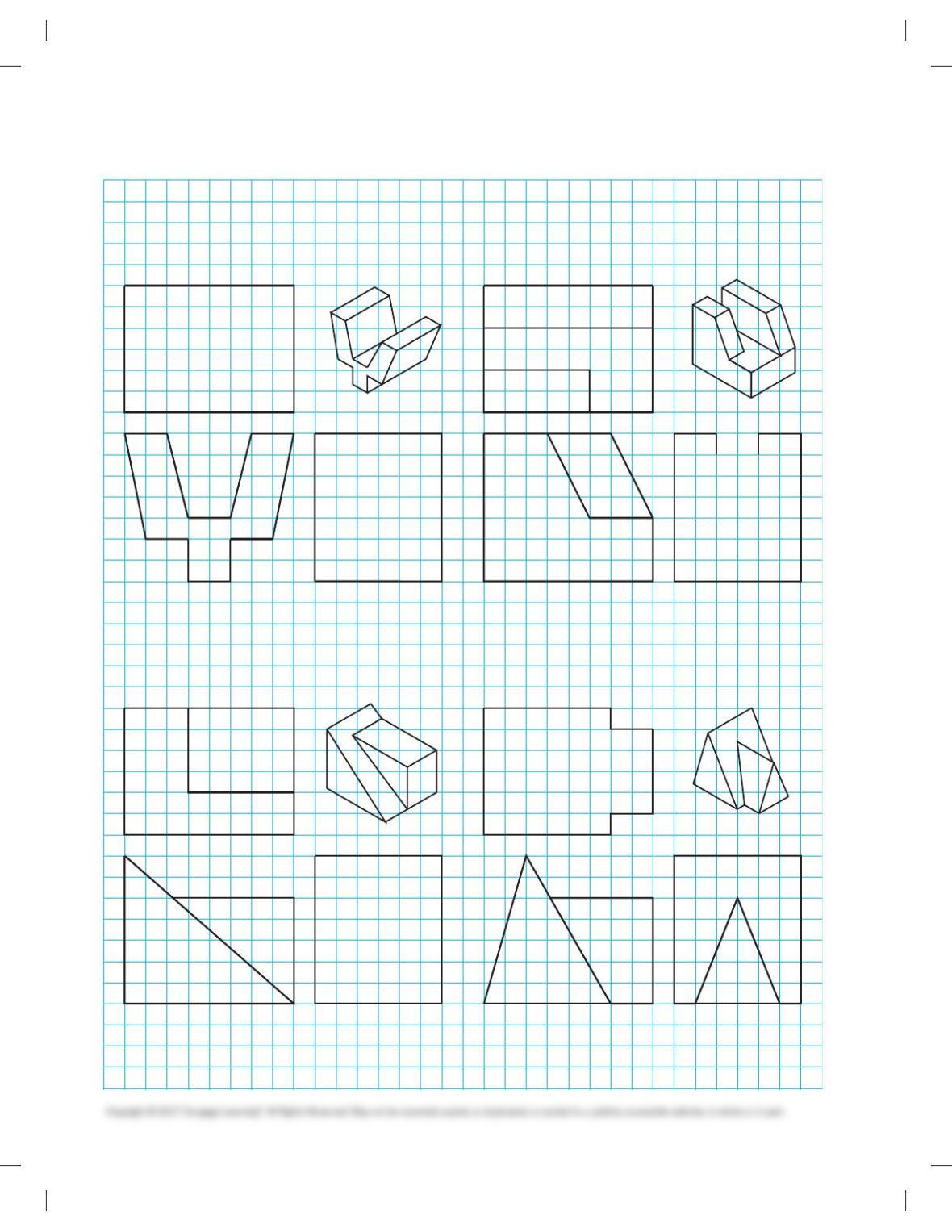

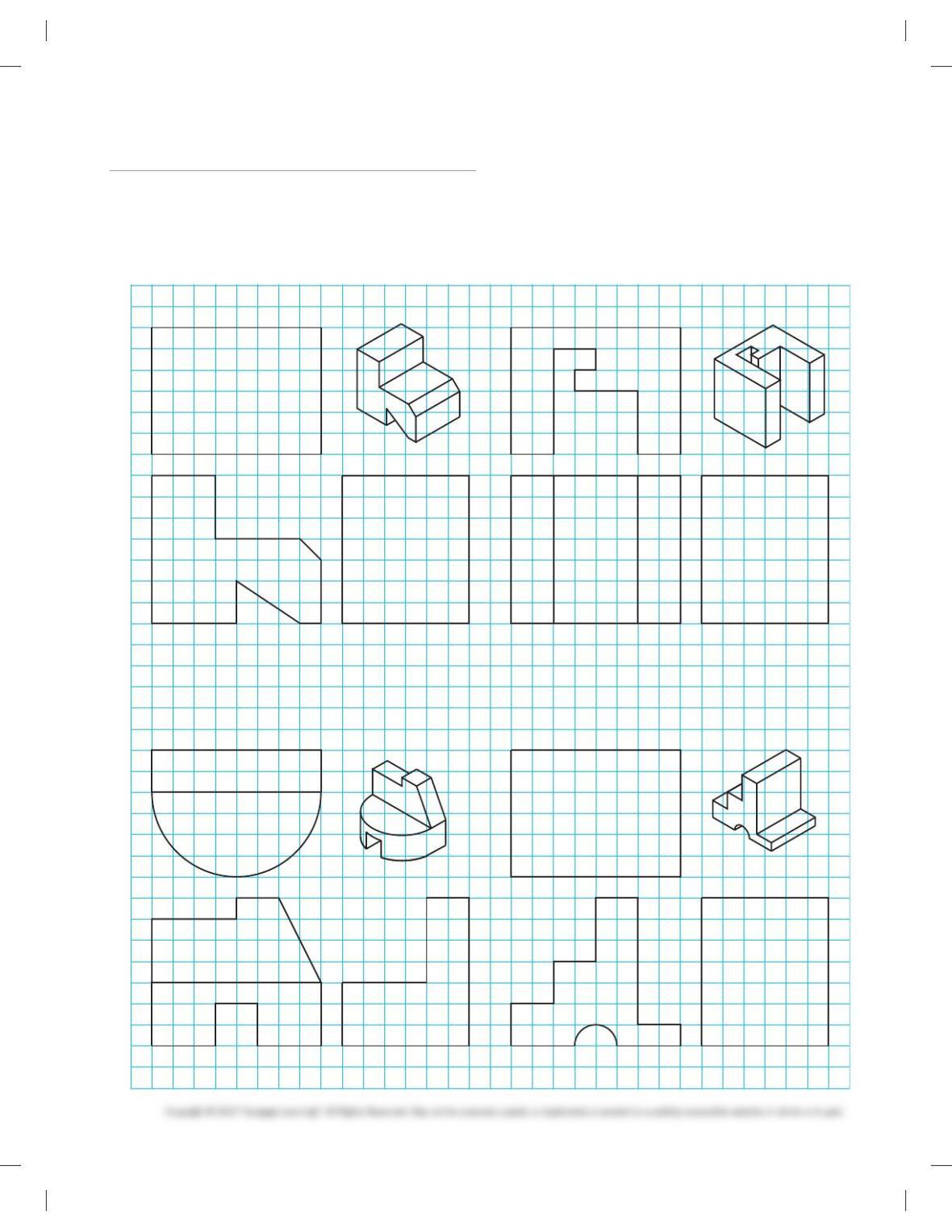

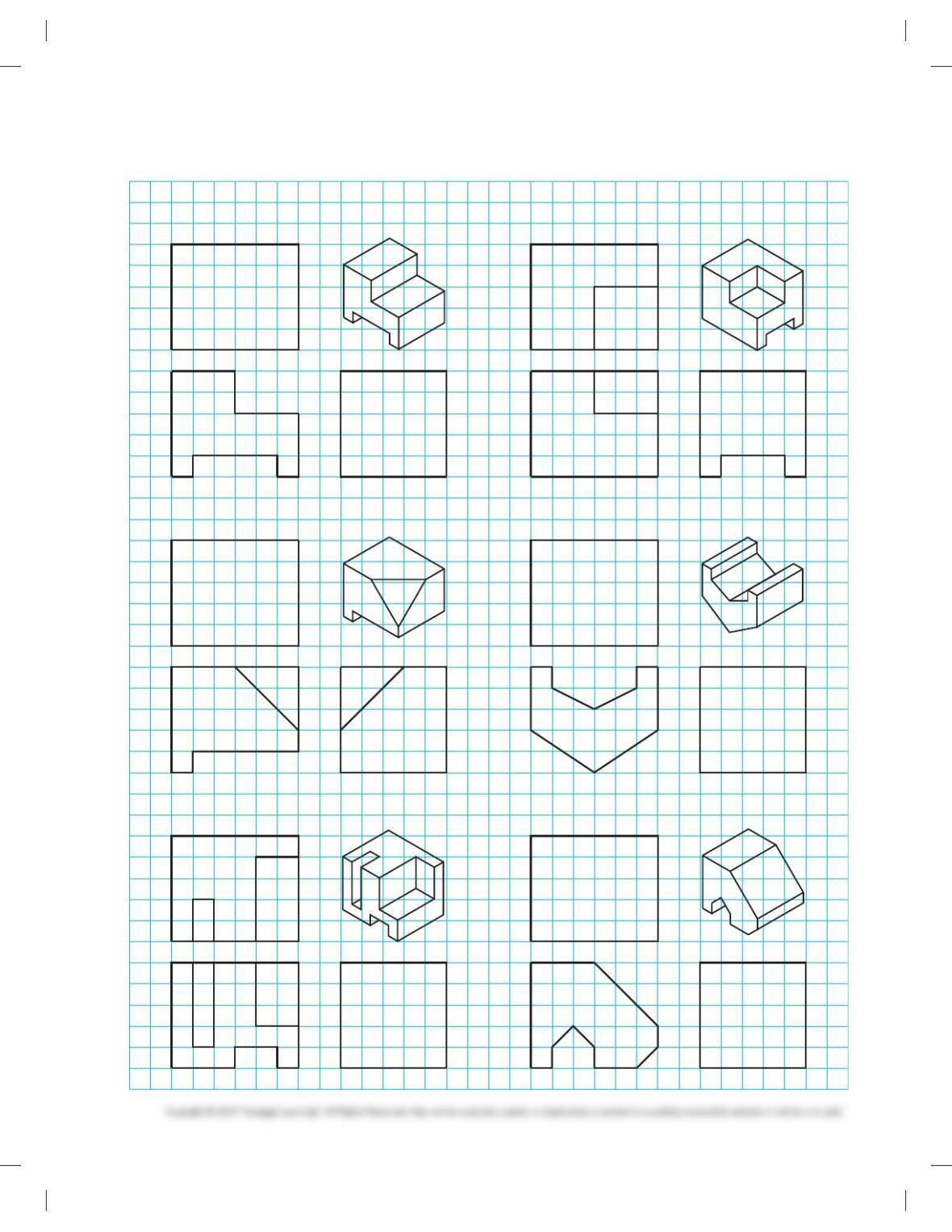

Part 2: Problems 8.6 Through 8.45

Given objects with recommended multiviews having missing lines

or missing views, draw the multiviews using third-angle projection.

Each square on the given grid represents 1 in. (25 mm).

Use appropriate size ASME standard sheet size and sheet

blocks for each problem unless otherwise specified by your

instructor.

59728_ch08_EOC_ptg01.indd 5 03/02/16 10:24 am

PROBLEM 8.10 PROBLEM 8.12

PROBLEM 8.11 PROBLEM 8.13

59728_ch08_EOC_ptg01.indd 6 03/02/16 10:24 am

PROBLEM 8.14

PROBLEM 8.15

PROBLEM 8.16

PROBLEM 8.17

59728_ch08_EOC_ptg01.indd 7 03/02/16 10:24 am

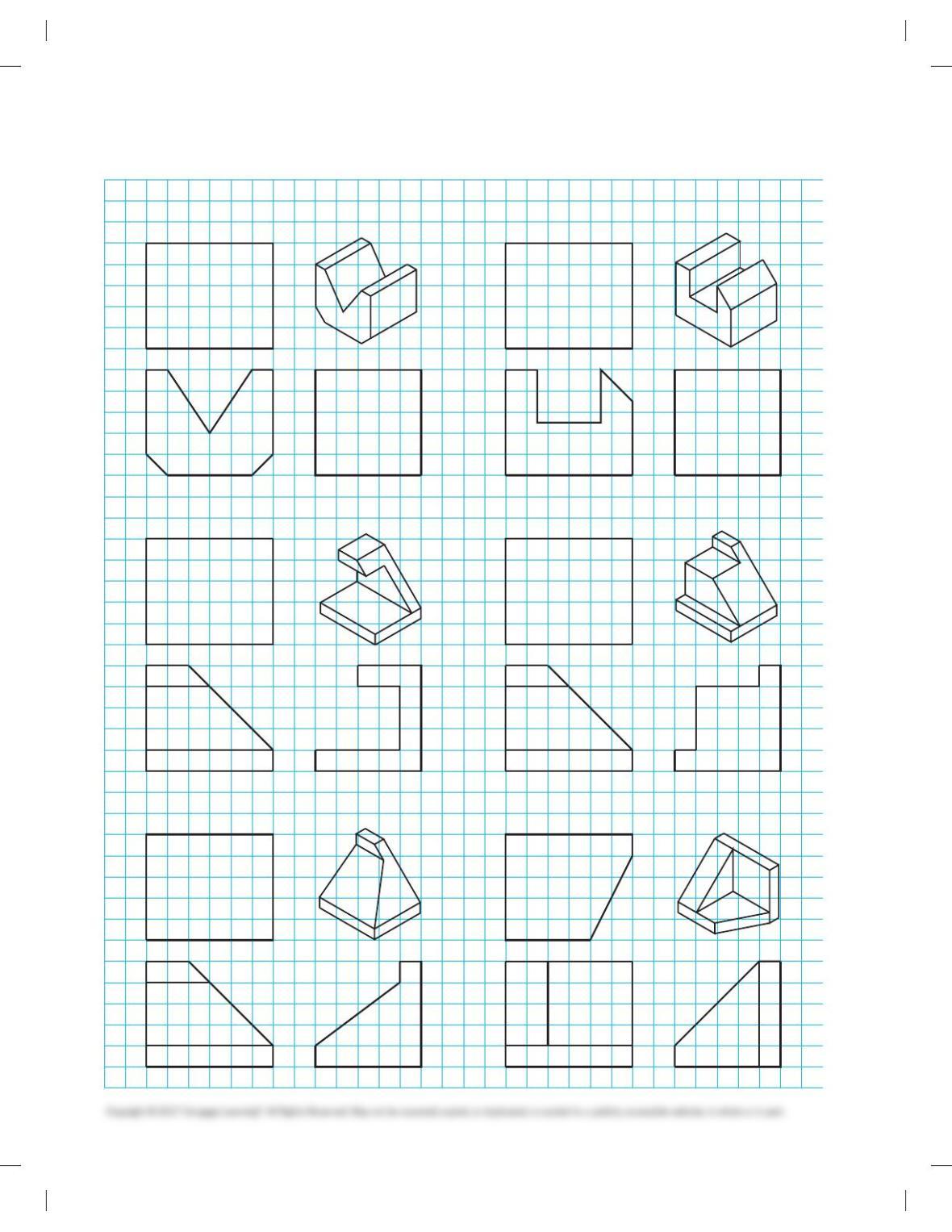

PROBLEM 8.18 PROBLEM 8.20

PROBLEM 8.19 PROBLEM 8.21

59728_ch08_EOC_ptg01.indd 8 03/02/16 10:24 am

PROBLEM 8.22

PROBLEM 8.24

PROBLEM 8.23

PROBLEM 8.25

PROBLEM 8.27

PROBLEM 8.26

59728_ch08_EOC_ptg01.indd 9 03/02/16 10:24 am

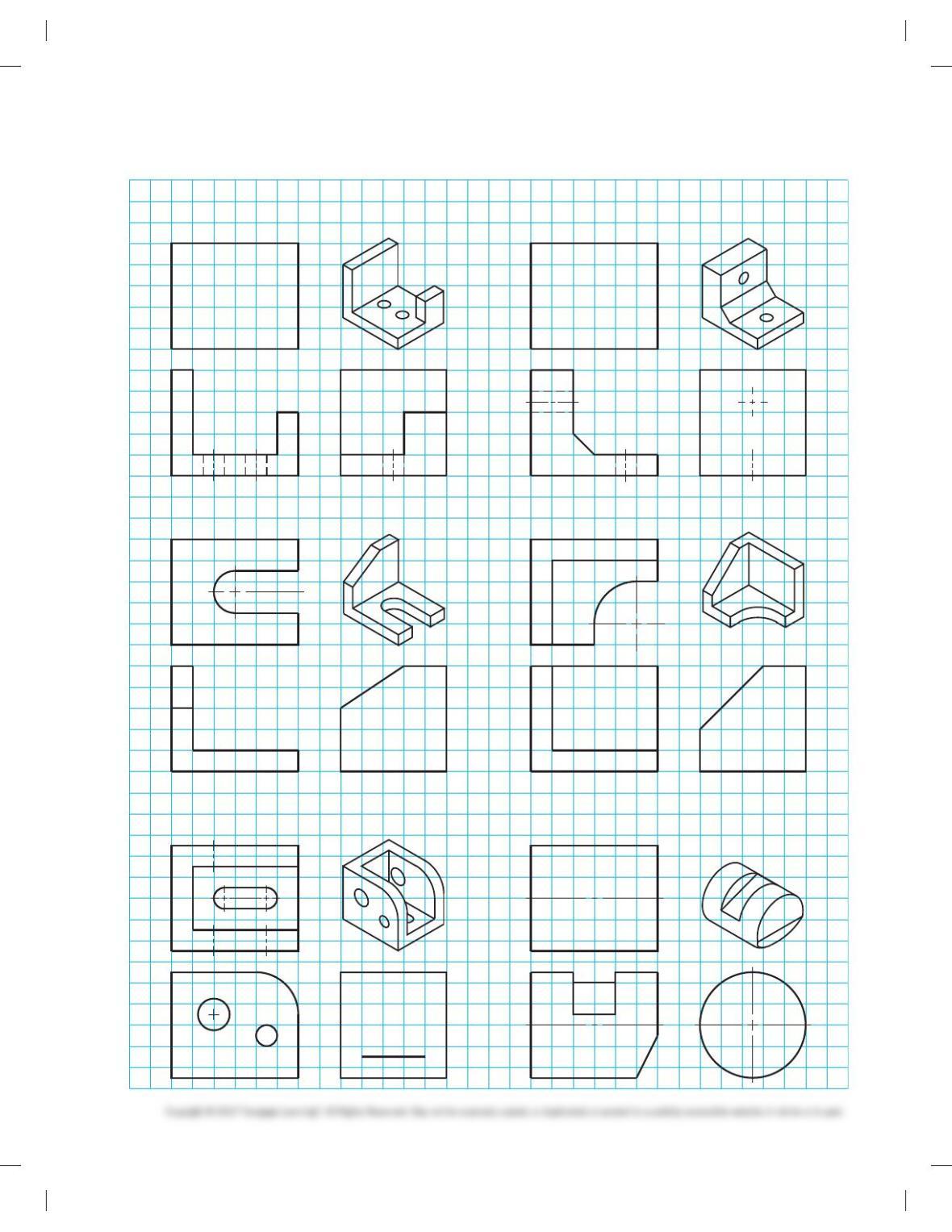

PROBLEM 8.28

PROBLEM 8.30

PROBLEM 8.29

PROBLEM 8.31

PROBLEM 8.33

PROBLEM 8.32

59728_ch08_EOC_ptg01.indd 10 03/02/16 10:24 am

PROBLEM 8.34

PROBLEM 8.36

PROBLEM 8.35

PROBLEM 8.37

PROBLEM 8.39

PROBLEM 8.38

59728_ch08_EOC_ptg01.indd 11 03/02/16 10:24 am

PROBLEM 8.40

PROBLEM 8.42

PROBLEM 8.41

PROBLEM 8.43

PROBLEM 8.45

PROBLEM 8.44

59728_ch08_EOC_ptg01.indd 12 03/02/16 10:24 am

PROBLEM 8.46

PROBLEM 8.48

PROBLEM 8.50

PROBLEM 8.47

PROBLEM 8.49

PROBLEM 8.51

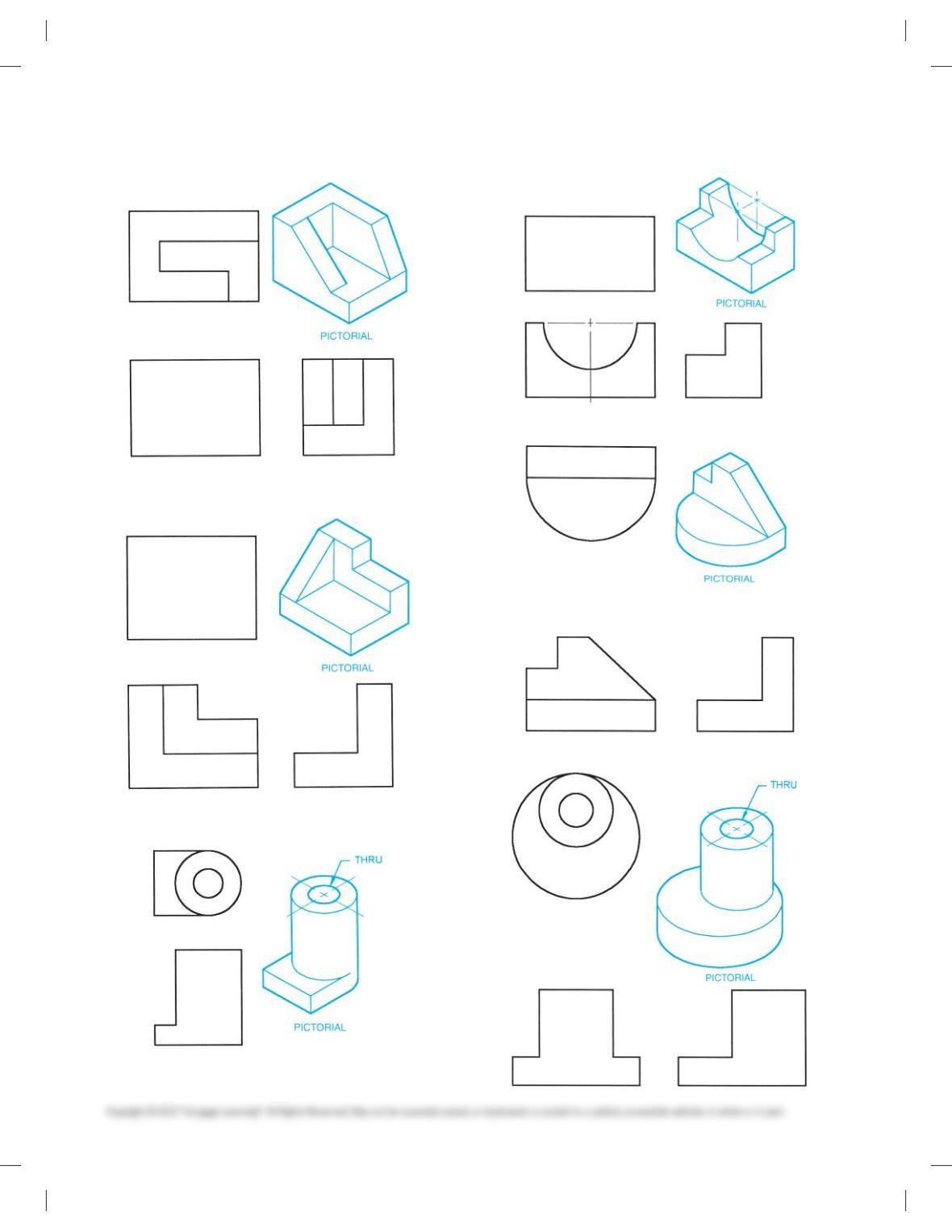

Part 4: Problems 8.53 Through 8.64

The following problems provide you with views that contain

missing lines or missing views. Draw the missing lines or missing

views as appropriate. Pictorial views are provided to aid in visu-

alization. You do not need to draw the pictorial view. Make a

print of each page and use the copy to measure the given views

and transfer the measurements to your formal drawing. Set up

your drawings with a properly sized border and title block. Use

an ASME sheet and sheet blocks. Properly complete the informa-

tion in the sheet blocks.

PROBLEM 8.53 Pocket block

PROBLEM 8.54 Angle gage

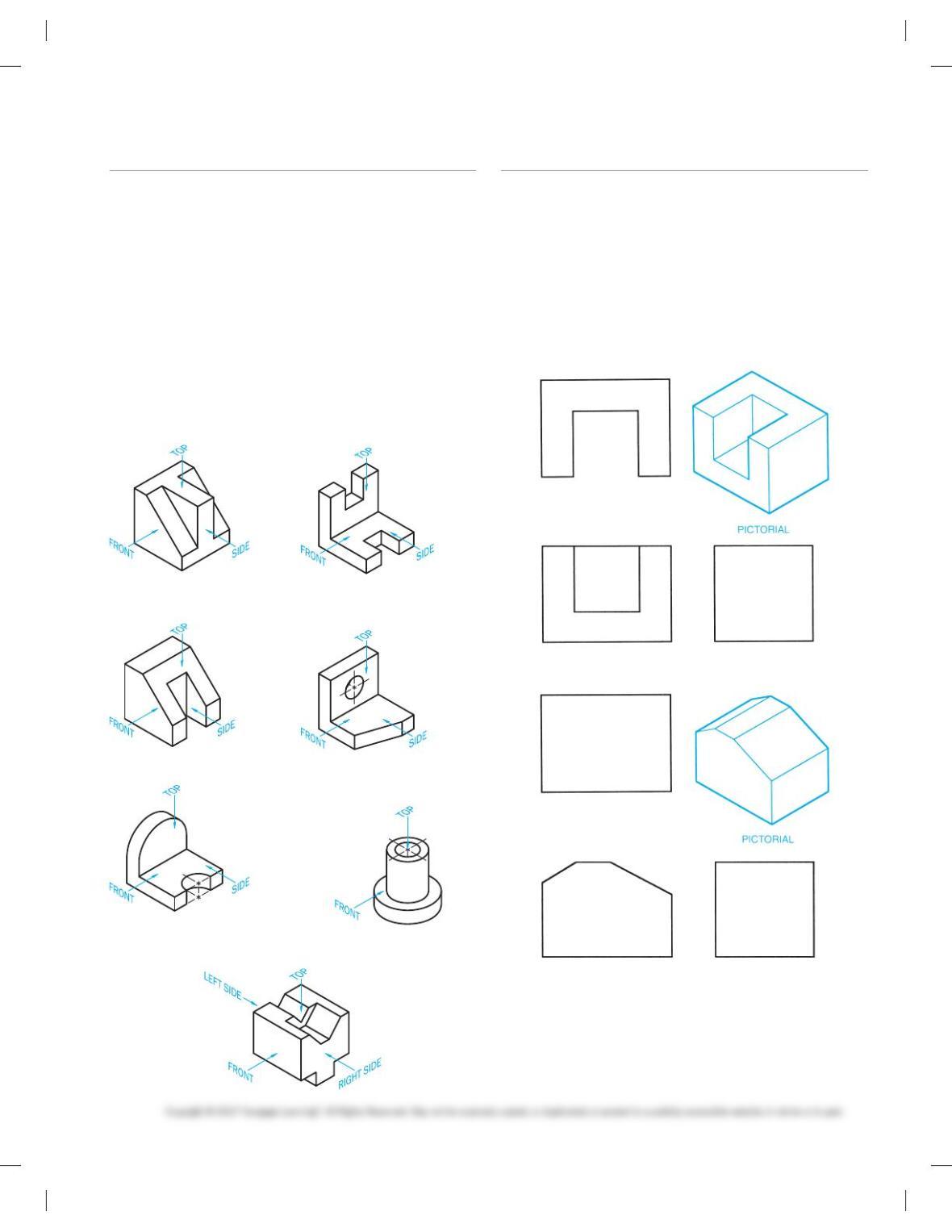

PROBLEM 8.52

Part 3: Problems 8.46 Through 8.52

The following problems provide you with a pictorial view of an

object, with required views identified with arrows pointing at the

viewing direction and labeled with the specific view orientation.

Make a print of each page and use the copy to measure the given

pictorial view (after printing out of these sheets) and transfer

your measurements to the required multiviews. Create one set of

first-angle projection views and one set of third-angle projection

views for each object. Label each view below the view exactly as

given in the pictorial, and label each set of views as FIRST-ANGLE

PROJECTION and THIRD-ANGLE PROJECTION correctly corre-

lated to the sets of multiviews. Set up your drawings with a prop-

erly sized border and title block. Use an ASME sheet and sheet

blocks. Properly complete the information in the sheet blocks.

59728_ch08_EOC_ptg01.indd 13 03/02/16 10:24 am

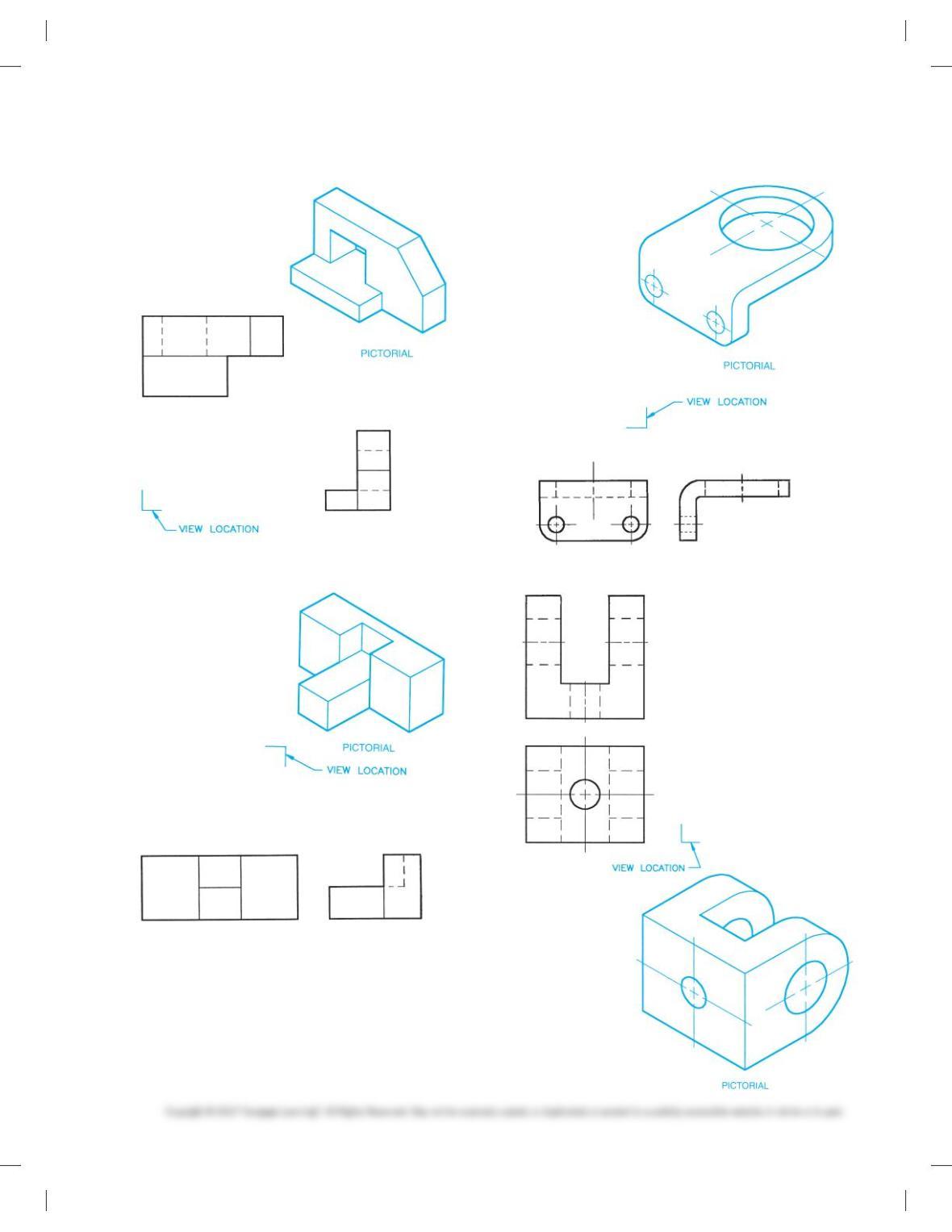

PROBLEM 8.55 Base

PROBLEM 8.56 Corner block

PROBLEM 8.57 Cylinder block

PROBLEM 8.58 Shaft block

PROBLEM 8.59 Gib

PROBLEM 8.60 Eccentric

59728_ch08_EOC_ptg01.indd 14 03/02/16 10:24 am

PROBLEM 8.61 Guide block

PROBLEM 8.62 Key slide

PROBLEM 8.63 Angle bracket

PROBLEM 8.64 Clevis

59728_ch08_EOC_ptg01.indd 15 03/02/16 10:24 am

Part 5: Problems 8.65 and8.66

Problems 8.65 and 8.66 provide you with pictorial views that

contain dimensions. A suggested view layout is provided for your

reference. Draw the required views. The pictorial views are given

to aid in visualization. You do not need to draw the pictorial view.

Use the given dimensions to create your formal drawing. Set up

your drawings with a properly sized sheet, border, and sheet

block. Properly complete the information in the title block. Do

not draw the dimensions.

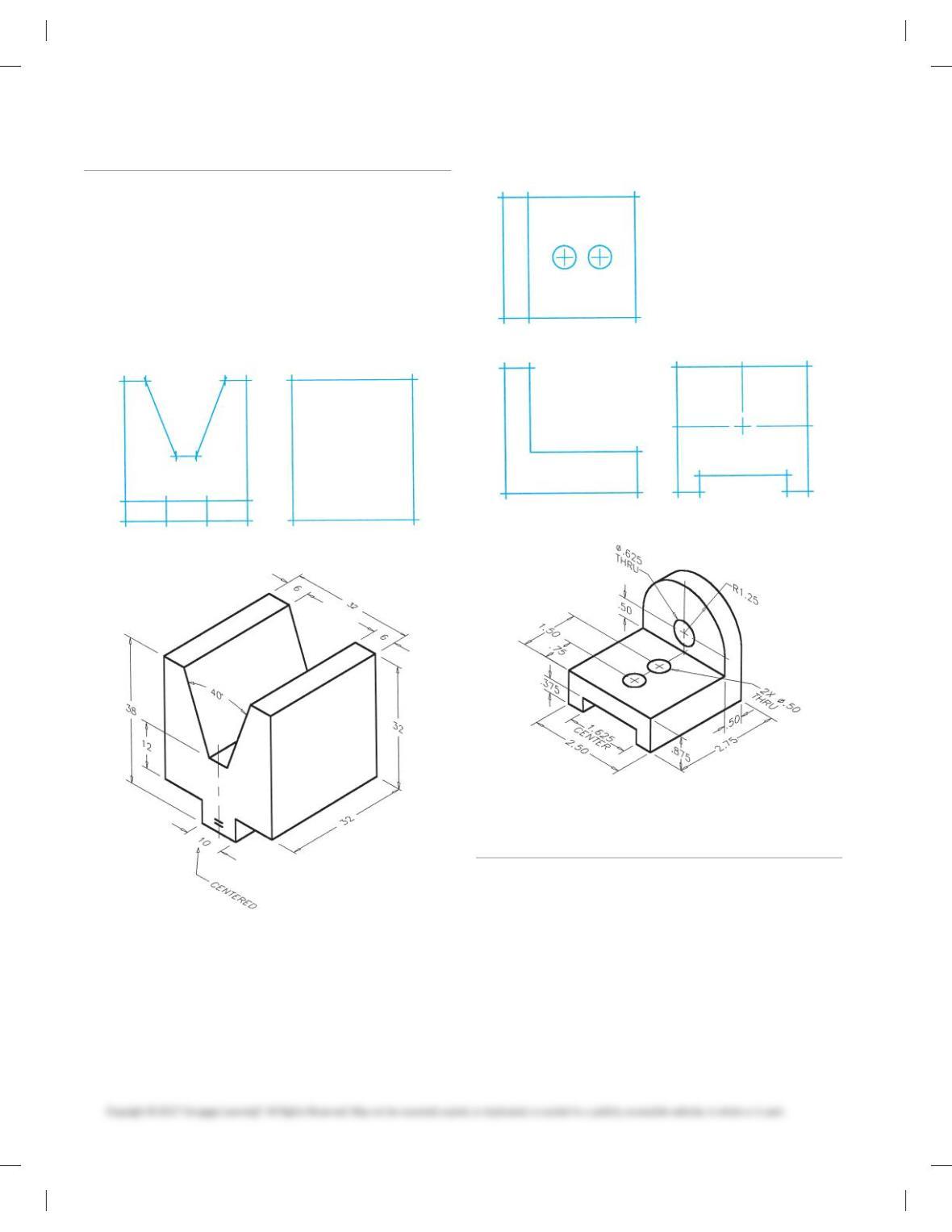

PROBLEM 8.65 V-block (metric)

PICTORIAL

PROBLEM 8.66 Guide base (in.)

PICTORIAL

Part 6: Problems 8.67 Through8.99

Problems 8.67 through 8.99 provide pictorial views or multiview

layouts that contain dimensions. Use the given information to

select and draw the necessary multiviews. In some cases, the

suggested number of views is given. Do not draw the pictorial

view. Set up your drawings with a properly sized sheet, border,

and sheet block. Properly complete the information in the title

block. Do not draw the dimensions.

59728_ch08_EOC_ptg01.indd 16 03/02/16 10:25 am

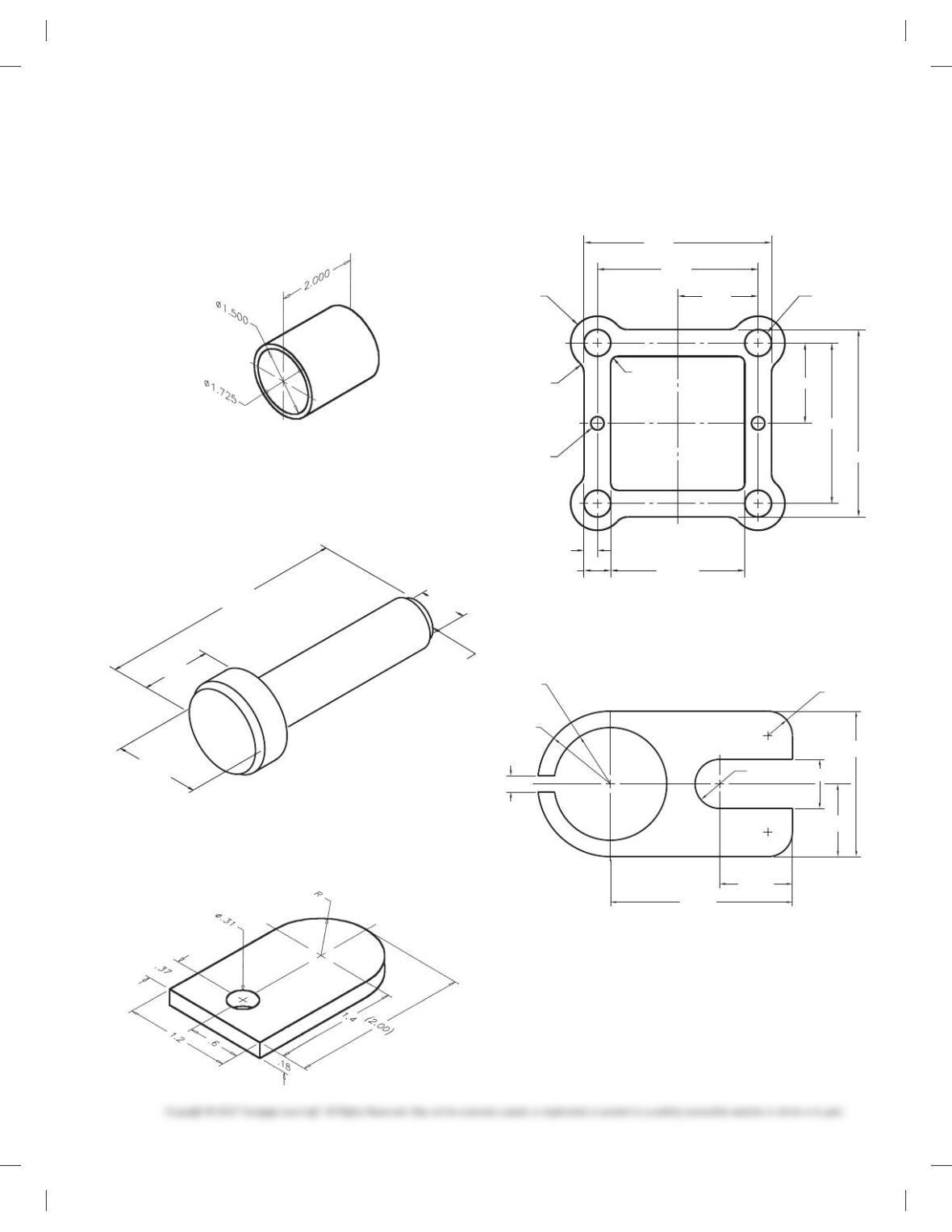

PROBLEM 8.67 One-view cylindrical object (in.)

Part Name: Sleeve Bearing

Material: Phosphor bronze

Problem based on original art courtesy of Production Plastics.

PROBLEM 8.68 One-view cylindrical object (in.)

Part Name: Pin

Material: SAE1035

Problem based on original art courtesy of Production Plastics.

9.35

1.40

Ø3.50

Ø1.95

2X 3X45°

PROBLEM 8.69 One-view arc and hole (in.)

Part Name: Door Lock

Material: Mild steel

PROBLEM 8.70 One-view arcs, circles, and centerlines(in.)

Part Name: Gasket

Material: .050 in. thick brass

2X 2.500

3.500

3.000

1.500

R.125

8X R.250

4X R.500

2X Ø.250

4X .250

4X .500

3.000

1.500

4X Ø.500

3.500

PROBLEM 8.71 One-view arcs and centerlines (in.)

Part Name: Clip

Material: .025 in. thick SAE 3140

5.000

R1.550

R2.000

.450

1.350

4.000

2.000

R.675

59728_ch08_EOC_ptg01.indd 17 03/02/16 10:25 am

PROBLEM 8.72 One-view circle and arc object lines and cen-

terlines (in.)

Part Name: Gasket

Material: .062 in. thick cork

45° 1.80

.80

Ø6.50

4X Ø.44

R.22

Ø5.50

Ø4.50

R2.40

R3.20

R3.45

45°

SYMMETRY

SYMBOL

THIS EDGE TANGENT

TO 6.50 DIAMETER

1.00

PROBLEM 8.73 Arc object lines, centerlines, phantom lines,

and leader lines (in.)

Part Name: Bogie Lock

Material: .25 in. thick mild steel

NOTE: Make bend line centerline type.

2X R2 1/2 R1

1 1/4

7 1/4

5 3/4

BEND DOWN 90°

BEND UP 90°

33 1/2

88 1/2

4 1/2

49 1/2

8 1/2

PROBLEM 8.74 Two views nontangent arcs (in.)

Part Name: Washer

Material: SAE 1060

2.000

7.740

3.075

6.15

5.500

11.000

3.508

2X R6.725

2X Ø3.540

PROBLEM 8.75 Planes and slot (in.)

Part Name: Step Block

Material: Mild steel

DEPTH

FULL

RADIUS

59728_ch08_EOC_ptg01.indd 18 03/02/16 10:25 am

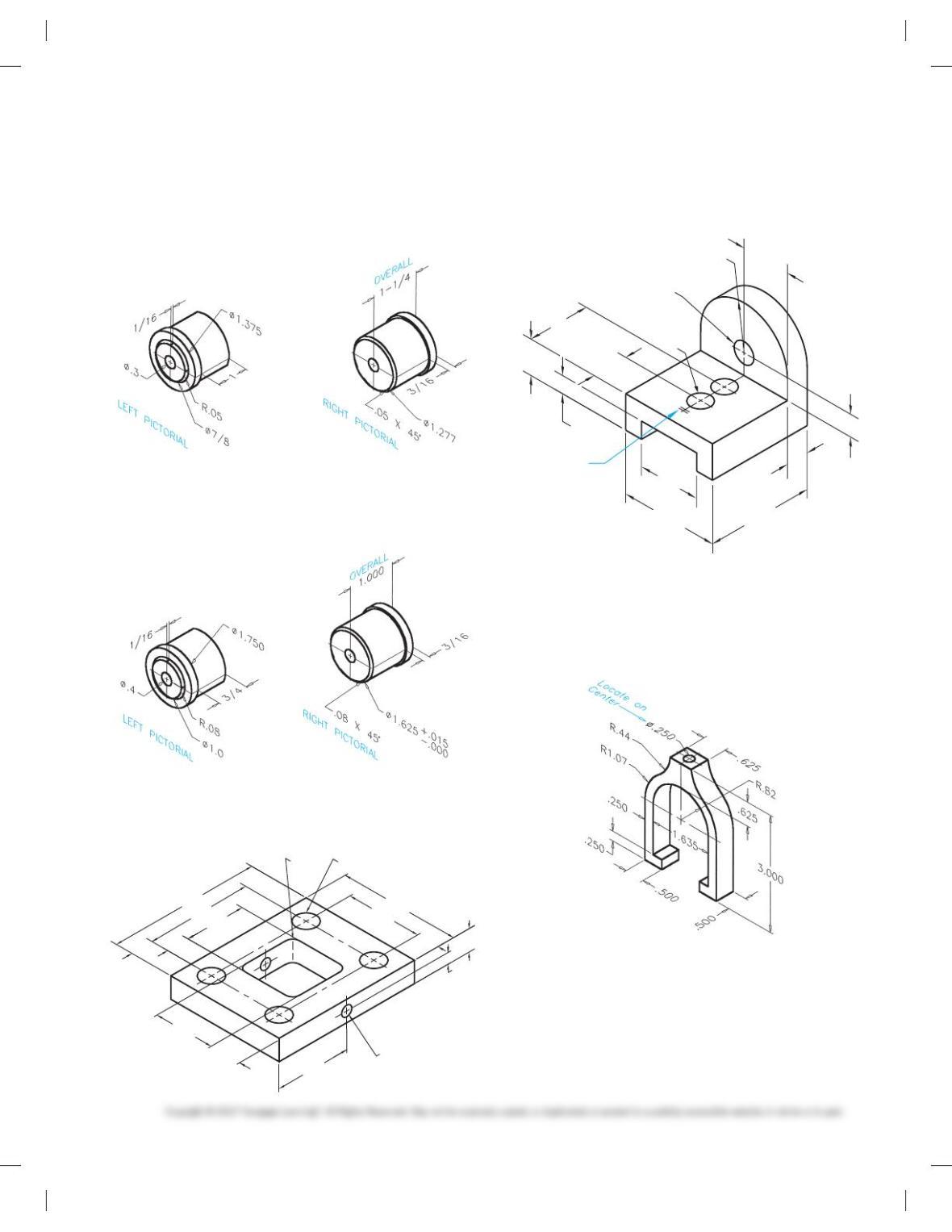

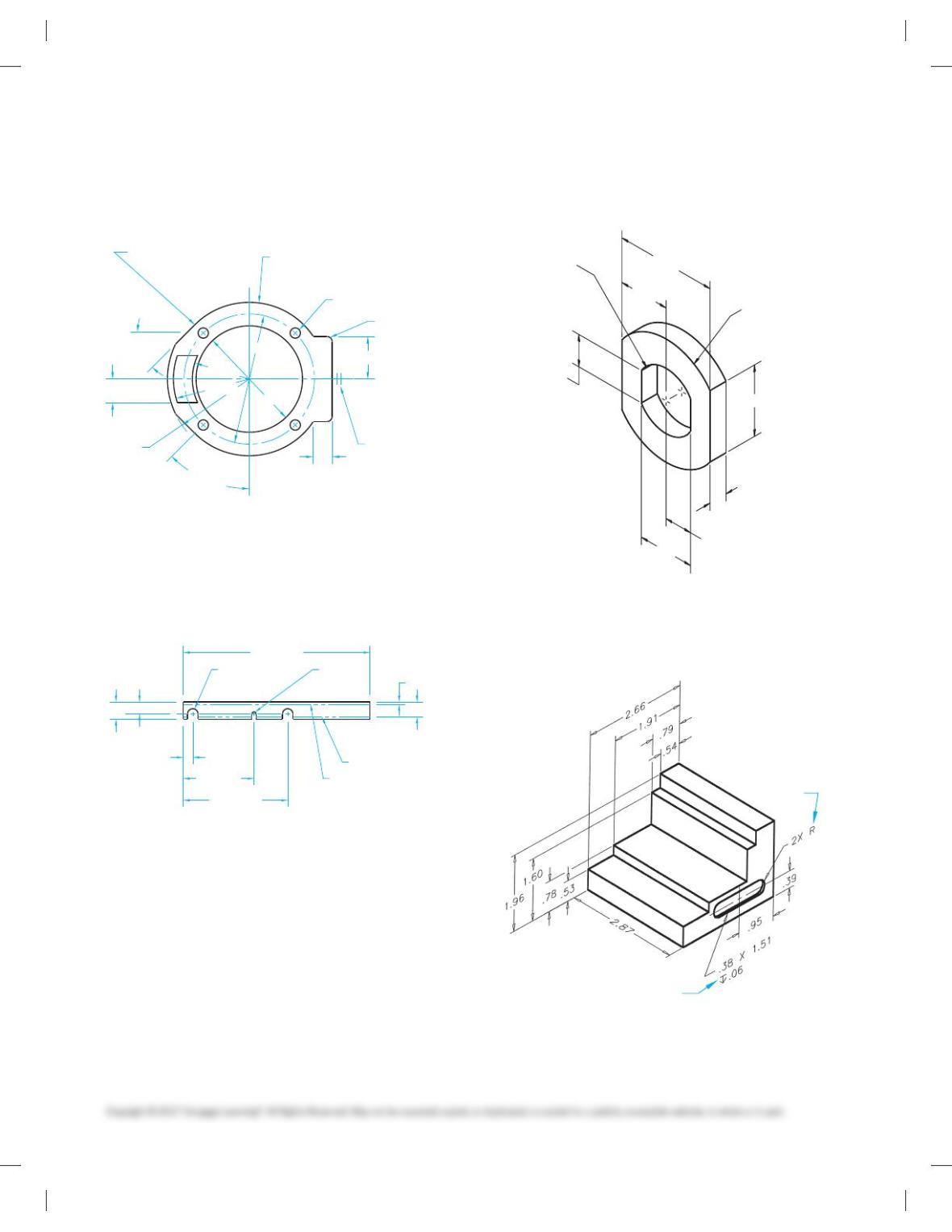

PROBLEM 8.76 Cylinders and circles (in.)

Part Name: Roll End Bearing

Material: Phosphor bronze

Problem based on original art courtesy of Production Plastics.

PROBLEM 8.77 Cylinders and circles (in.)

Part Name: Roll End Bearing

Material: Phosphor bronze

PROBLEM 8.78 Two views with holes (in.)

Part Name: Pivot Bracket

Material: SAE 3135

2.50

2X Ø.50

.75

2.00

2.50

4.00

2.00

3.50

5.00

.75

1.00

.75

Ø.75

4X R .50

.38

PROBLEM 8.79 Three views with holes and slot (in.)

Part Name: Sliding Bracket

Material: Phosphor bronze

5.50

1.25

R2.75

2X Ø1.25

Ø1.25

3.50

6.00

2.75

2.00

SYMBOL DENOTES

SYMMETRY

2.00

3.50

1.25

1.00

PROBLEM 8.80 Circle arcs and planes (in.)

Part Name: V-block Clamp

Material: SAE 1080

59728_ch08_EOC_ptg01.indd 19 03/02/16 10:25 am

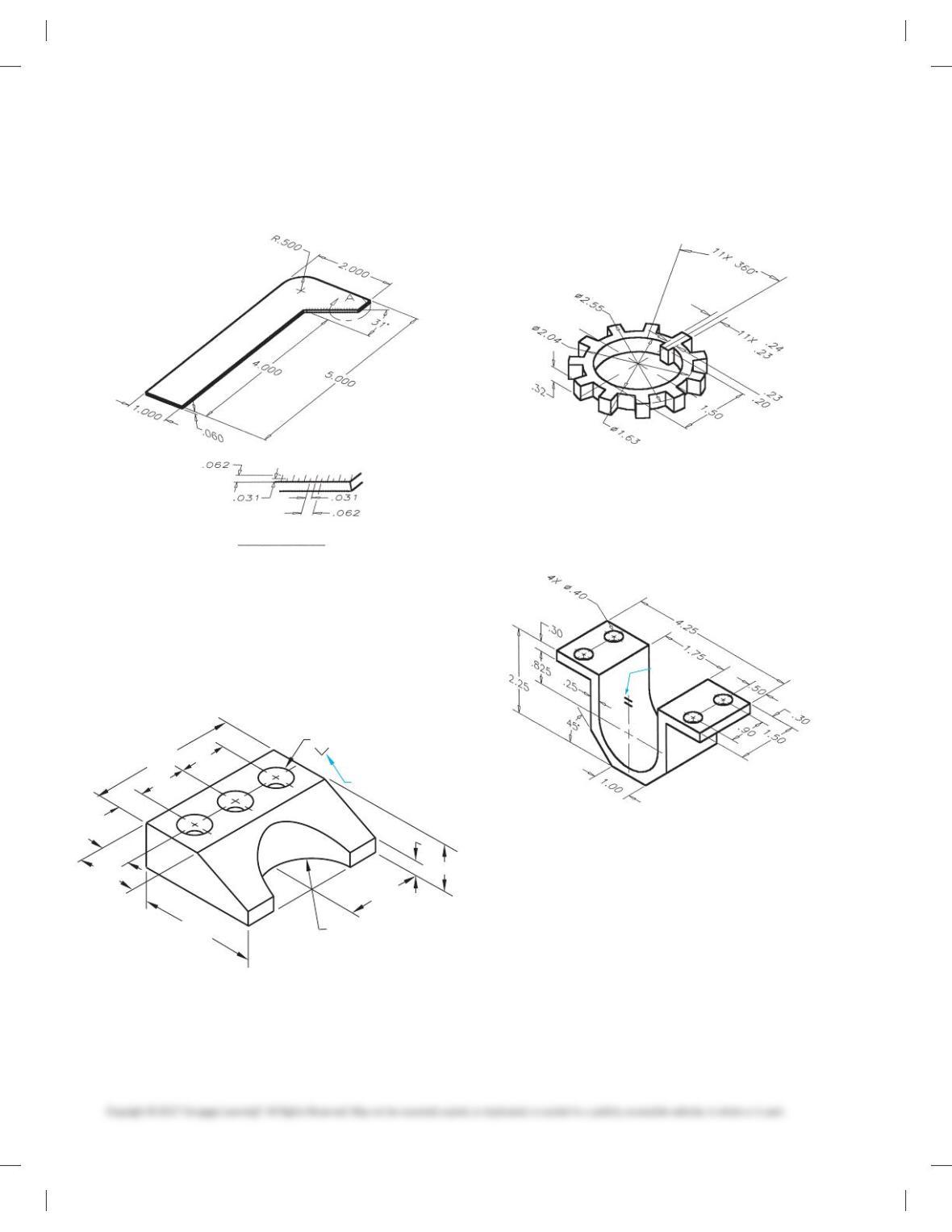

PROBLEM 8.81 View enlargement (in.)

Part Name: Drill Gauge

Material: 16-GA mild steel

DETAIL A

SCALE 4:1

PROBLEM 8.82 Two views with angled surface, countersinks

(in.)

Part Name: Angle Bracket

Material: SAE 1145

2.50

.45

.80

.50

1.00

2.00

1.25

.25

.75

R.75

3X Ø.25

Ø.50 X 82°

COUNTERSINK

SYMBOL

PROBLEM 8.83 Multiple features (in.)

Part Name: Lock Ring

Material: SAE 1020

PROBLEM 8.84 Angles and holes (in.)

Part Name: Bracket

Material: SAE 1020

SYMMETRY

SYMBOL

59728_ch08_EOC_ptg01.indd 20 03/02/16 10:25 am

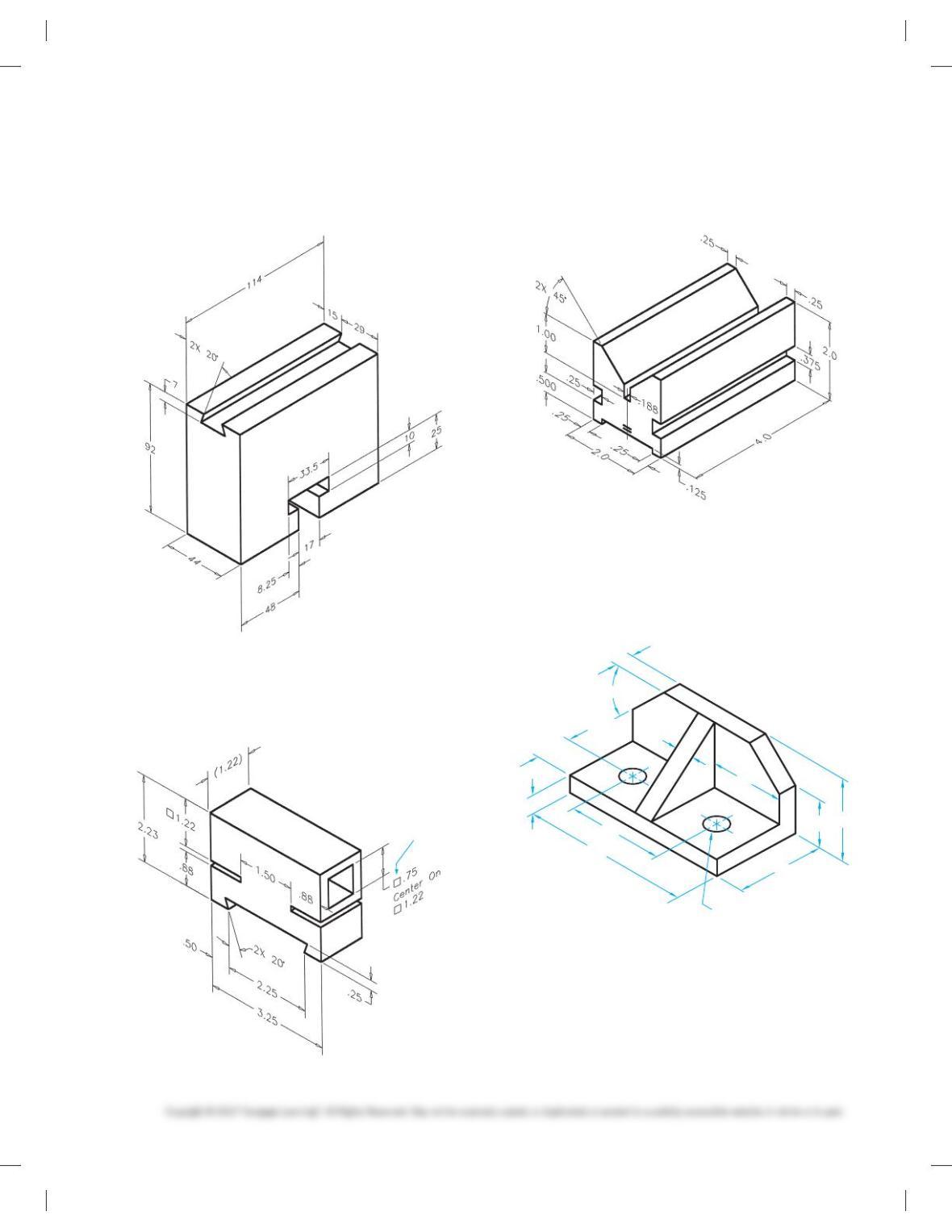

PROBLEM 8.85 Multiviews (metric)

Part Name: Guide Rail

Material: SAE 4310

PROBLEM 8.86 Multiviews (in.)

Part Name: Support Bracket

Material: Plastic

SQUARE

SYMBOL

PROBLEM 8.87 Multiviews (in.)

Part Name: V-block

Material: A-steel

PROBLEM 8.88 Multiviews, angles, and holes (metric)

Part Name: Angle Bracket

Material: Mild steel

Specific Instructions: Center 2X Ø15 holes and provide location

dimension.

2X Ø15

112

45°

59728_ch08_EOC_ptg01.indd 21 03/02/16 10:25 am
