PROBLEM 15.24 Working drawing (metric)
Assembly Name: Fishing Reel
SPECIFIC INSTRUCTIONS: This problem is advanced, and con-
tains challenging applications that include gears. You should
study gears and related drafting practices covered in Chapter 19
before completing this problem.

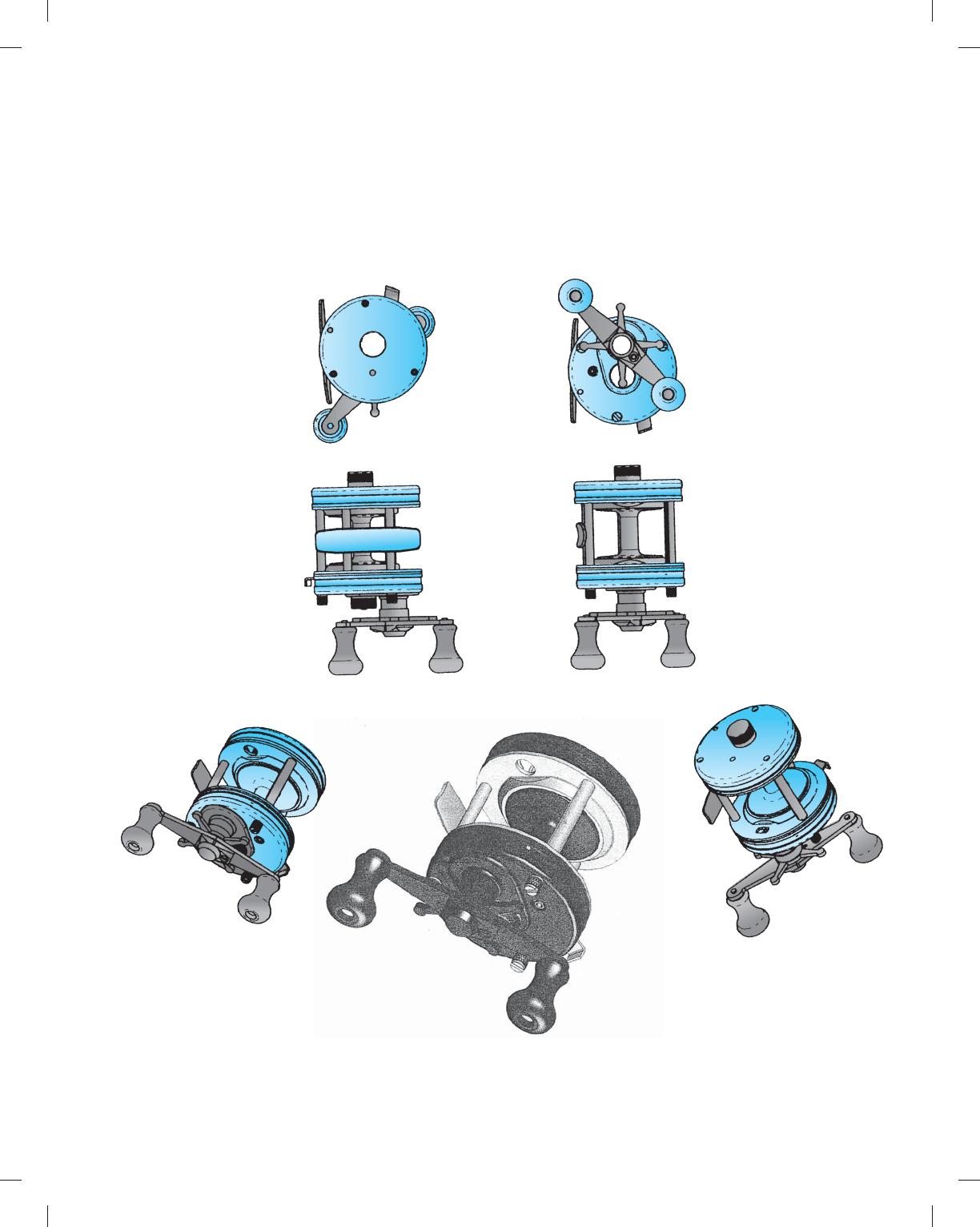

FULL REEL OVERVIEW
59728_ch15_EOC_ptg01.indd 61 2/3/16 2:24 PM
62
PROBLEM 15.24
(Continued)

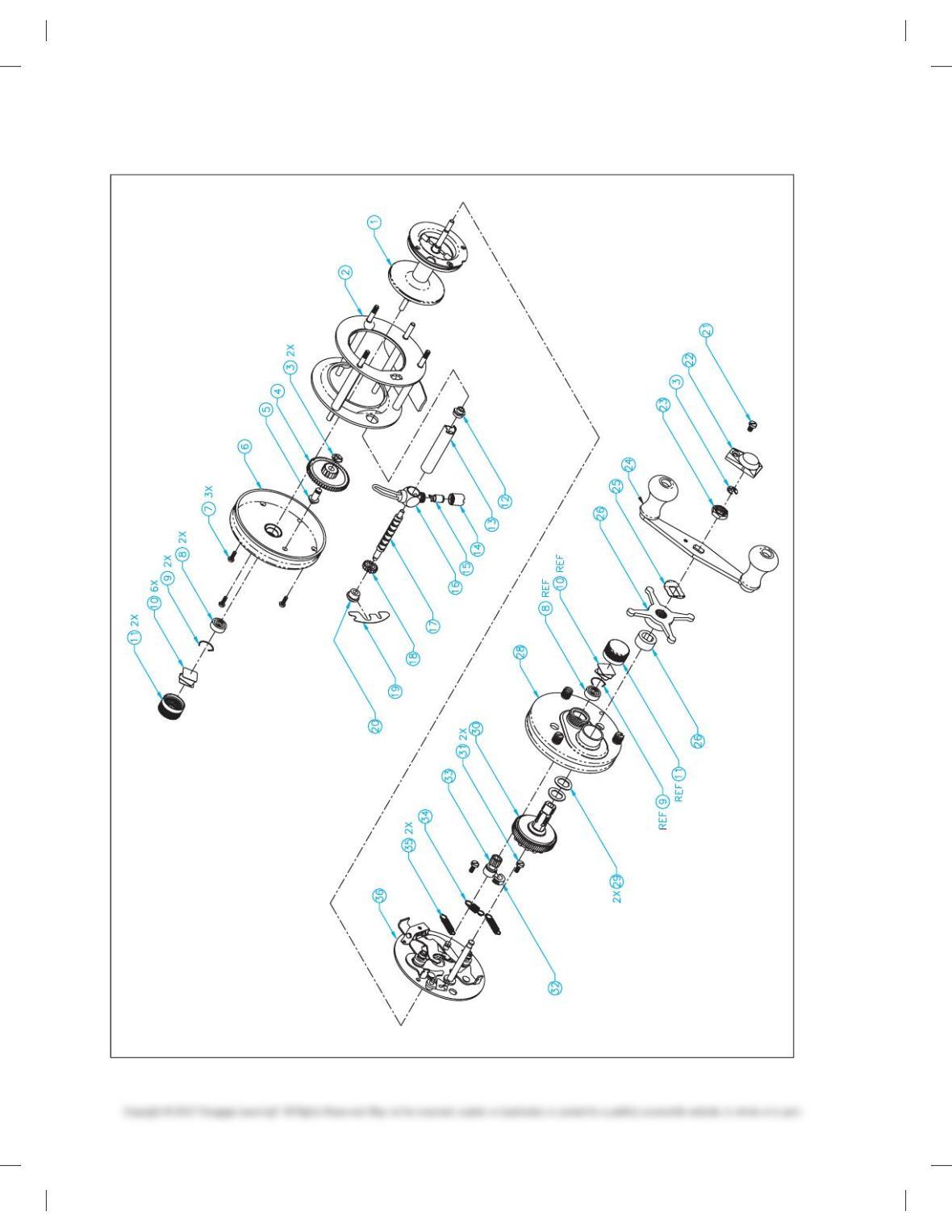

ASSEMBLY FULLY EXPLODED
59728_ch15_EOC_ptg01.indd 62 2/3/16 2:24 PM
63
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 63 2/3/16 2:24 PM

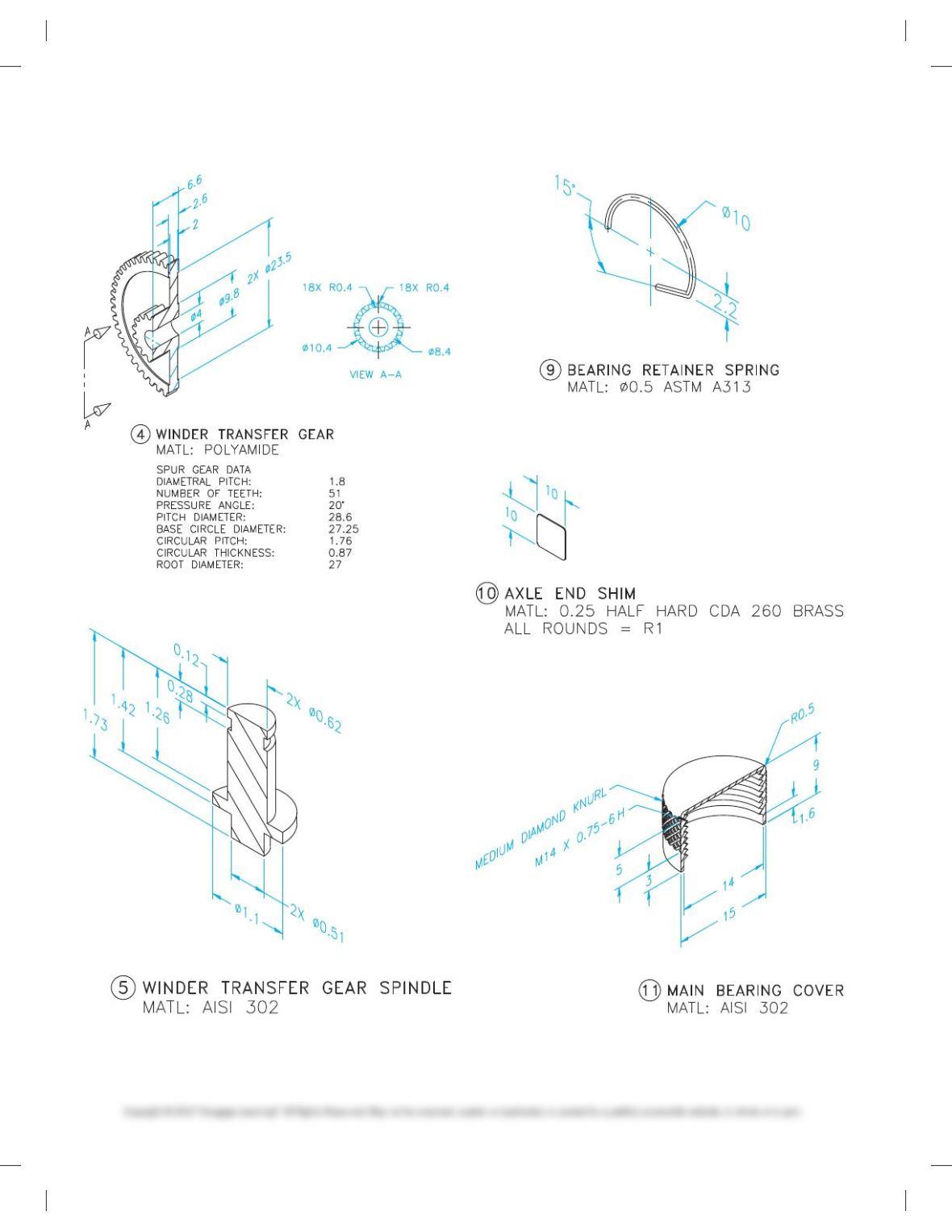

64
PROBLEM 15.24
(Continued)
MAIN REEL ASSEMBLY PARTS
59728_ch15_EOC_ptg01.indd 64 2/3/16 2:24 PM

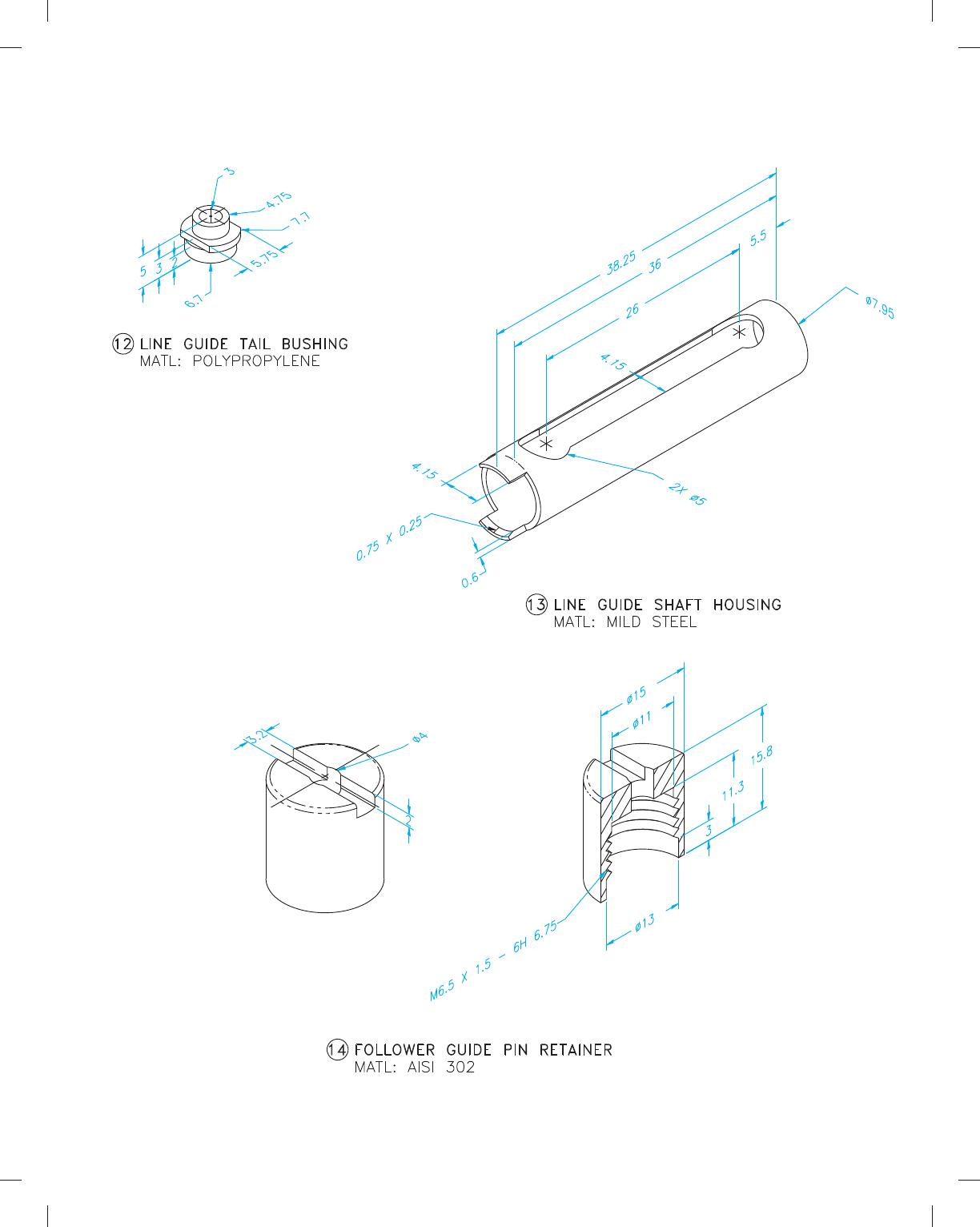

65
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 65 2/3/16 2:24 PM

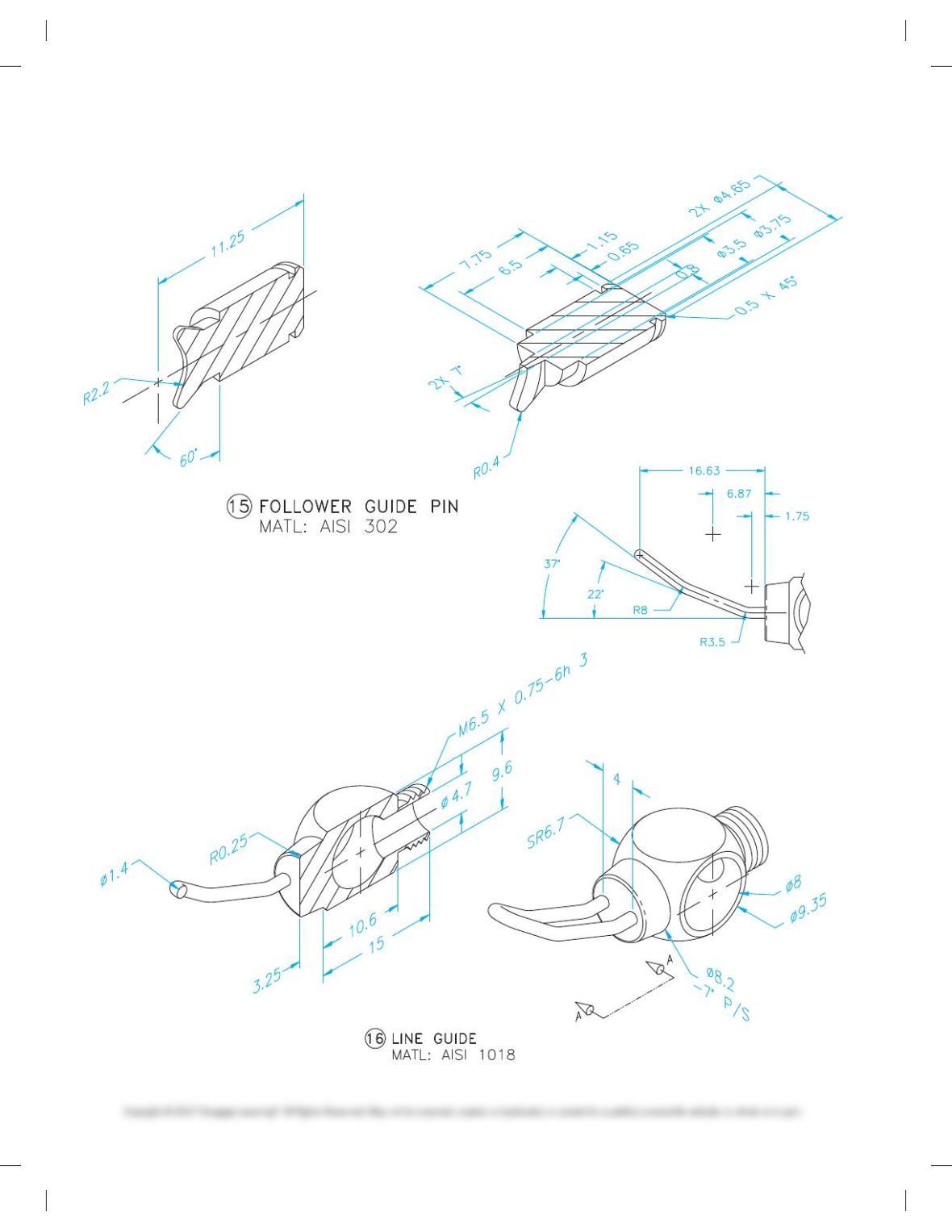

66
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 66 2/3/16 2:24 PM

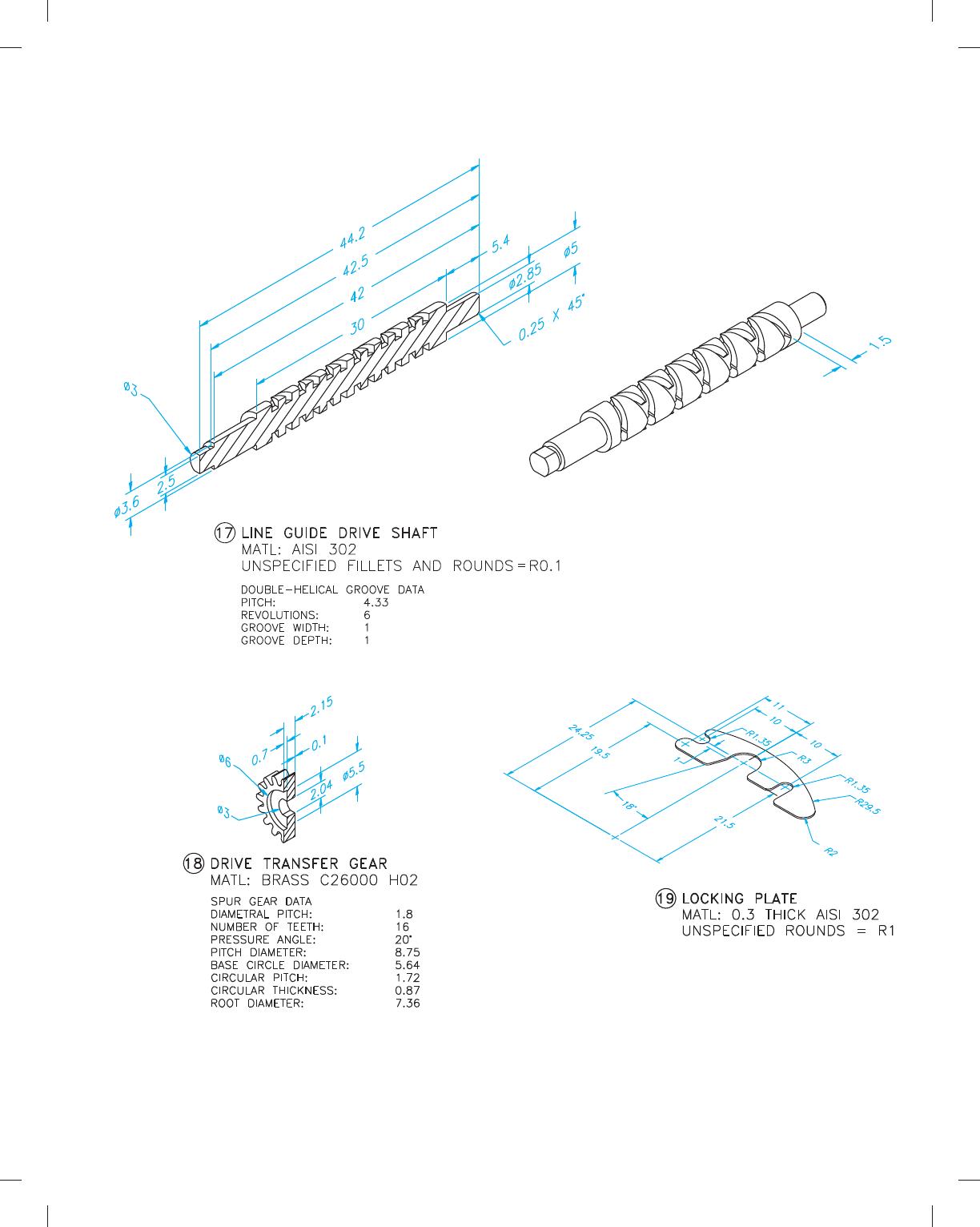

67
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 67 2/3/16 2:24 PM

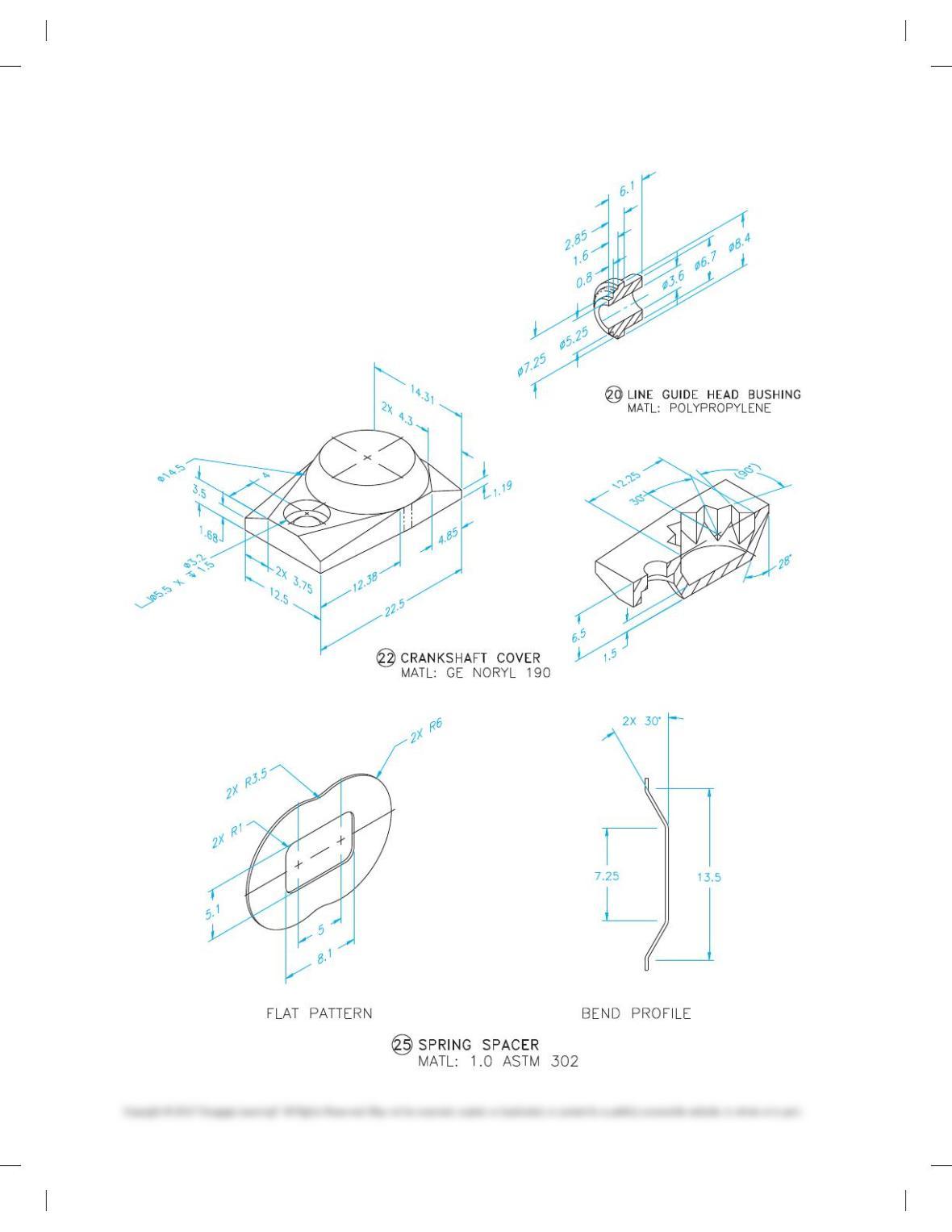

68
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 68 2/3/16 2:24 PM

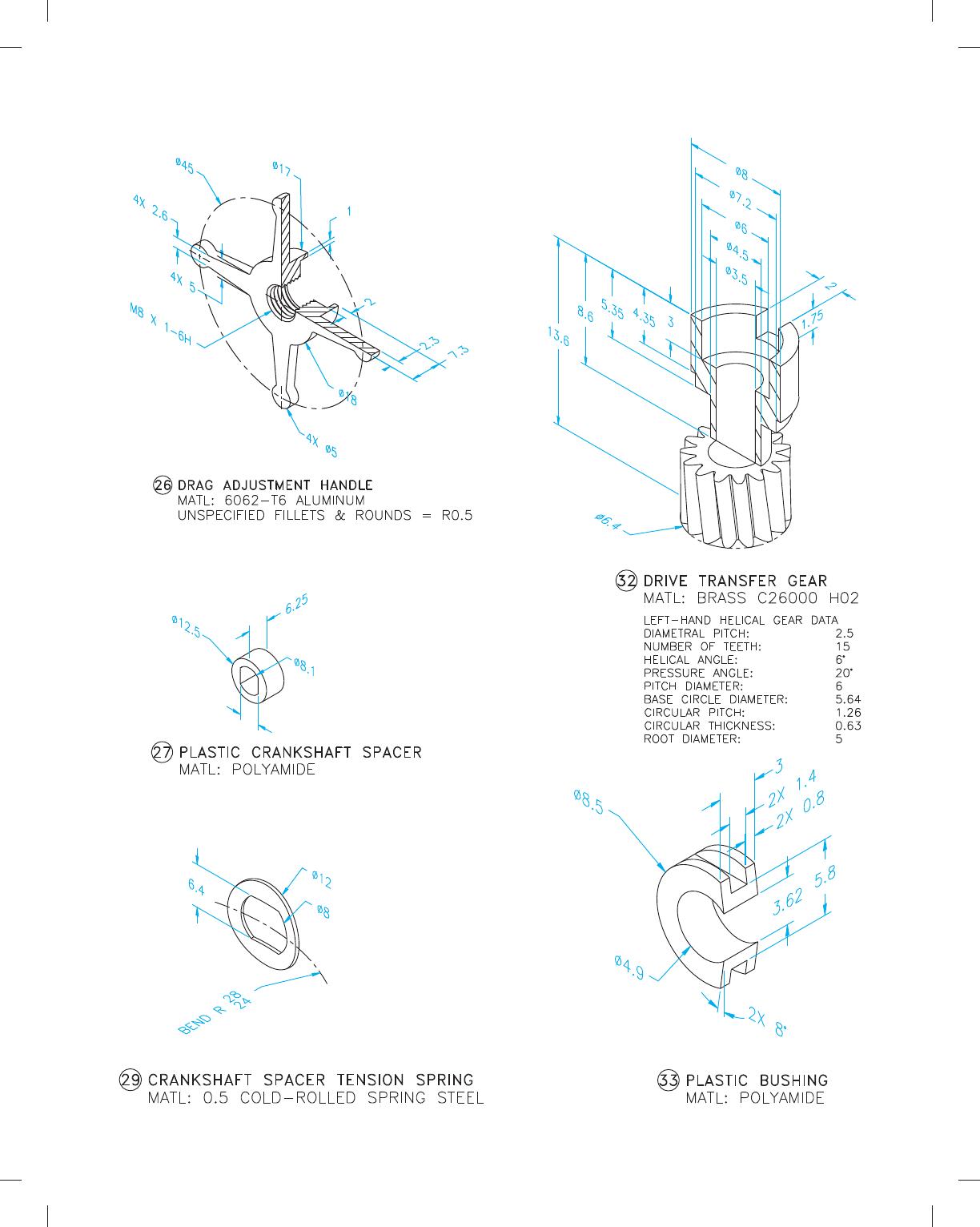

69
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 69 2/3/16 2:24 PM
70
PROBLEM 15.24
(Continued)
1
2
1
1
1
QTY DESCRIPTIONITEM

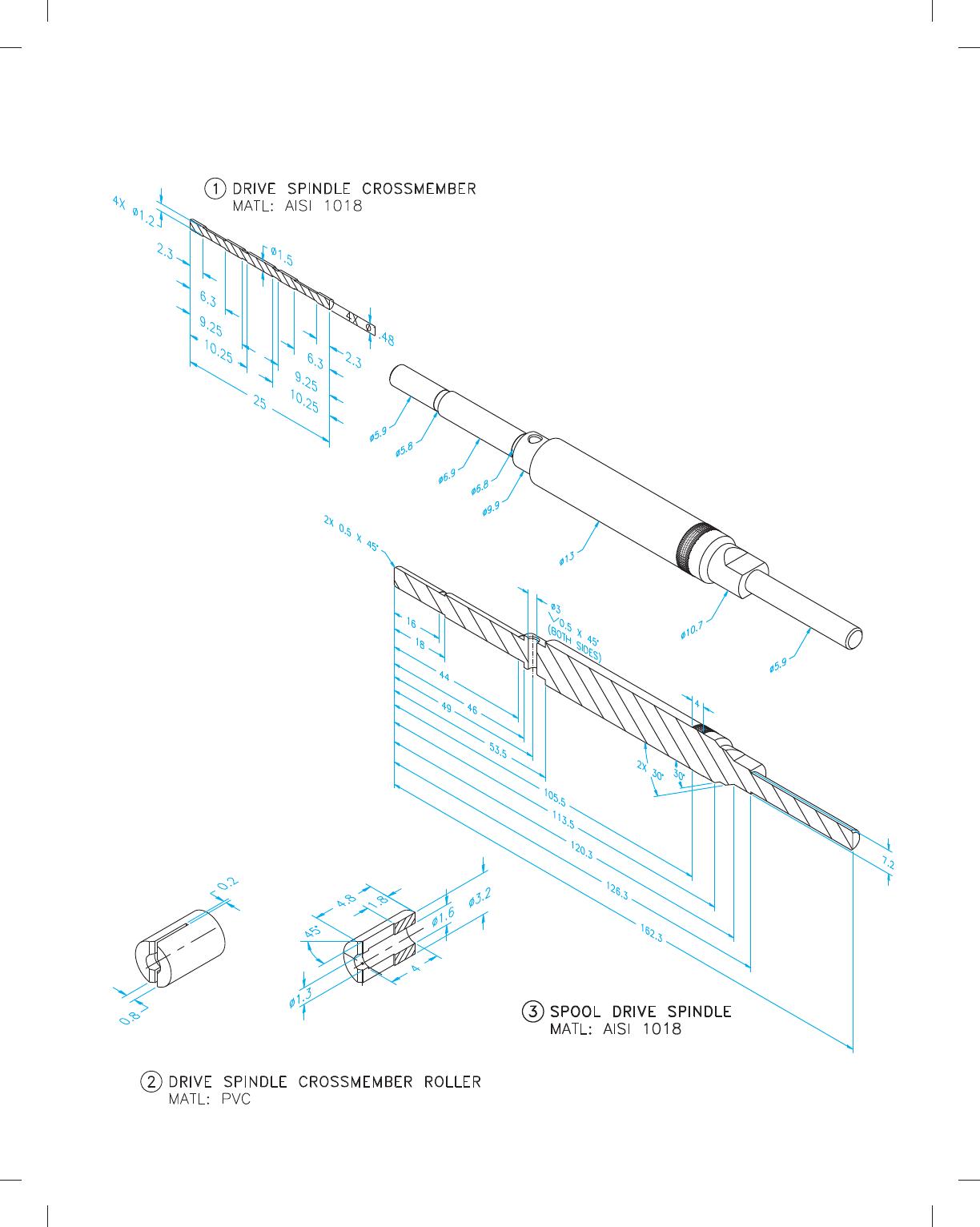

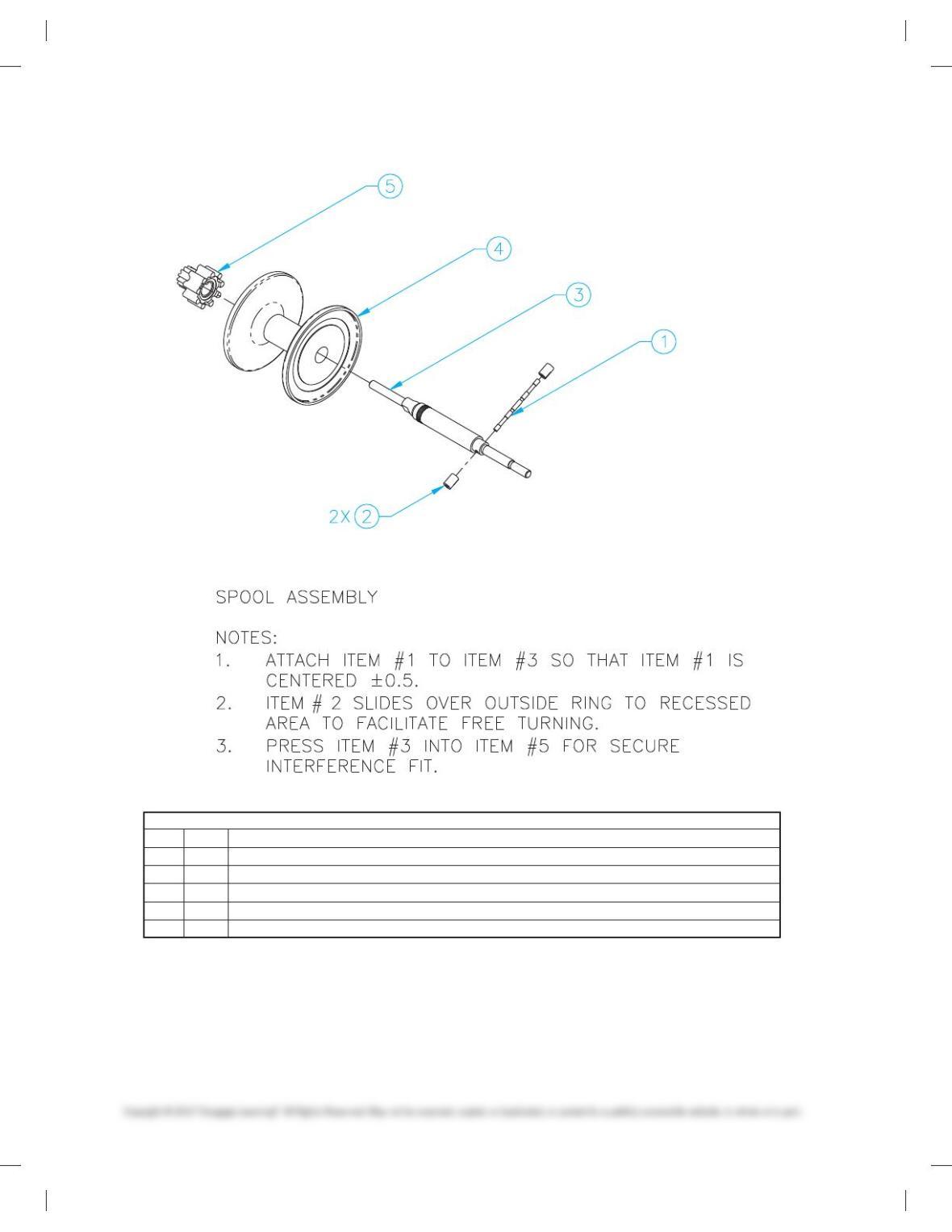

SPOOL ASSEMBLY BILL OF MATERIALS
DRIVE SPINDLE CROSSMEMBER1
2
3
4
5
DRIVE SPINDLE CROSSMEMBER ROLLER
SPOOL
SPOOL TO WINDER TRANSFER GEAR
SPOOL DRIVE SPINDLE
SPOOL ASSEMBLY
SPOOL ASSEMBLY BILL OF MATERIALS
59728_ch15_EOC_ptg01.indd 70 2/3/16 2:24 PM
71
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 71 2/3/16 2:24 PM
72
PROBLEM 15.24
(Continued)
1
1
2
1
1
QTY DESCRIPTION

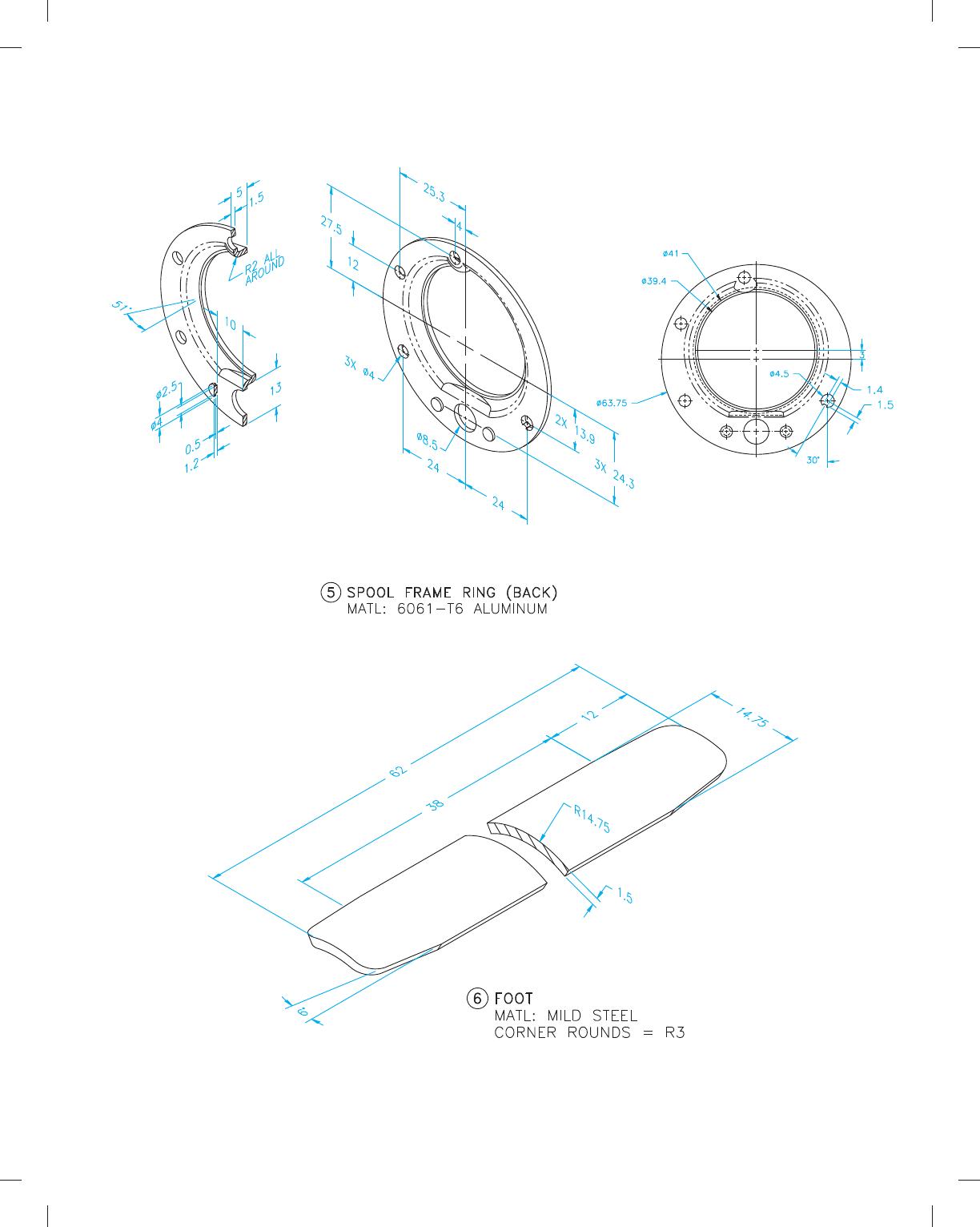

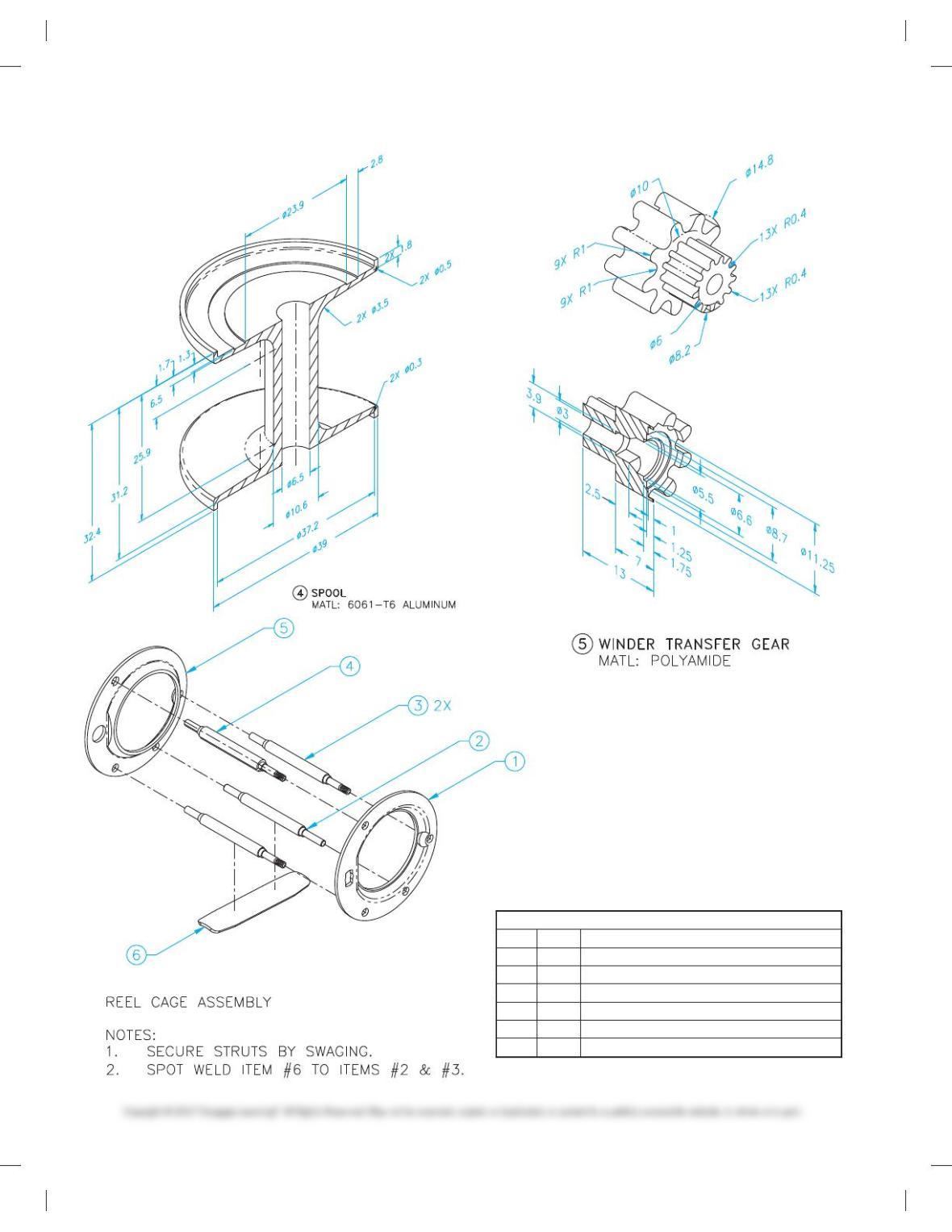

REEL CAGE ASSEMBLY BILL OF MATERIALS
ITEM
REEL CAGE ASSEMBLY BILL OF MATERIALS

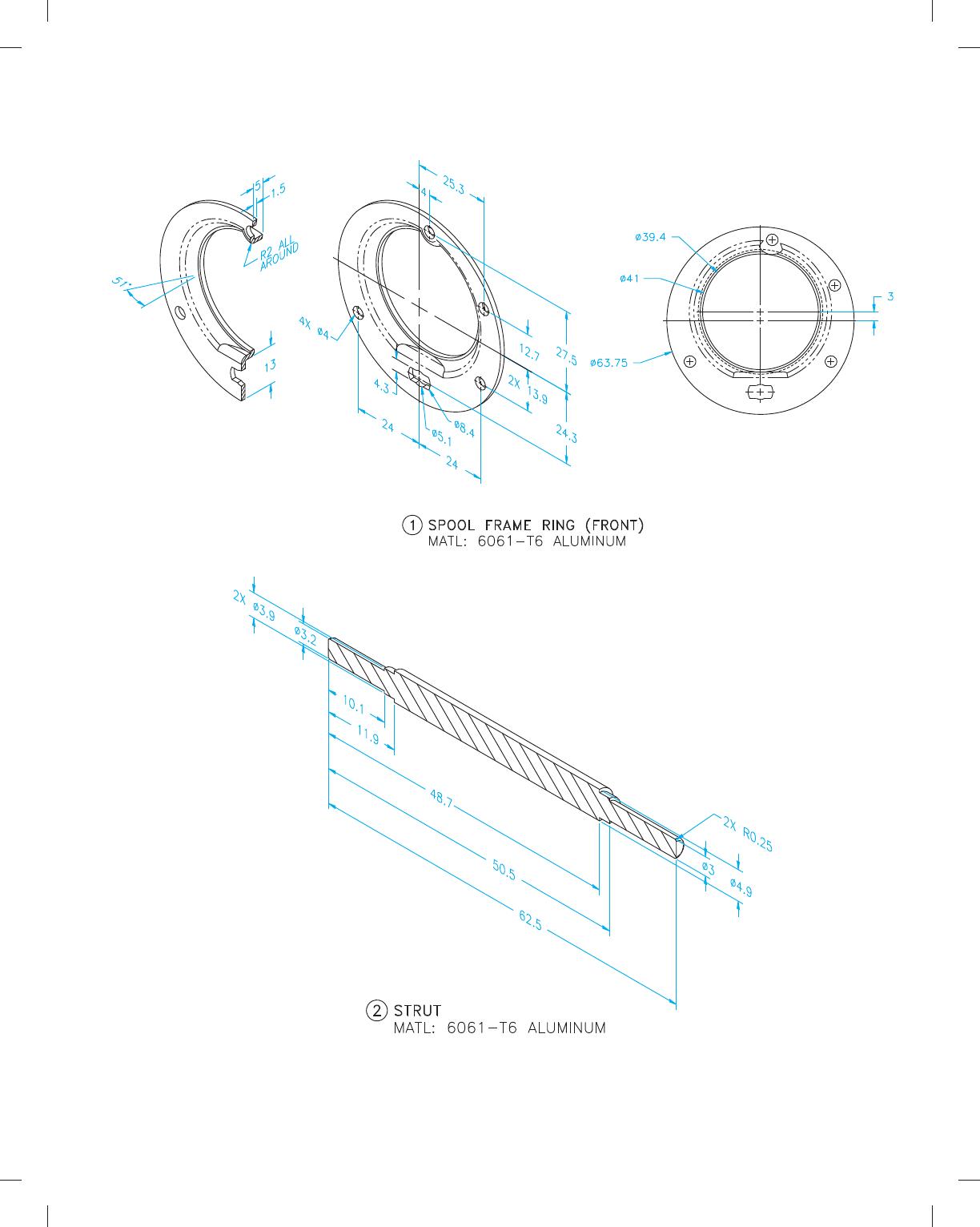

SPOOL FRAME RING (FRONT)1
2
3
4
6

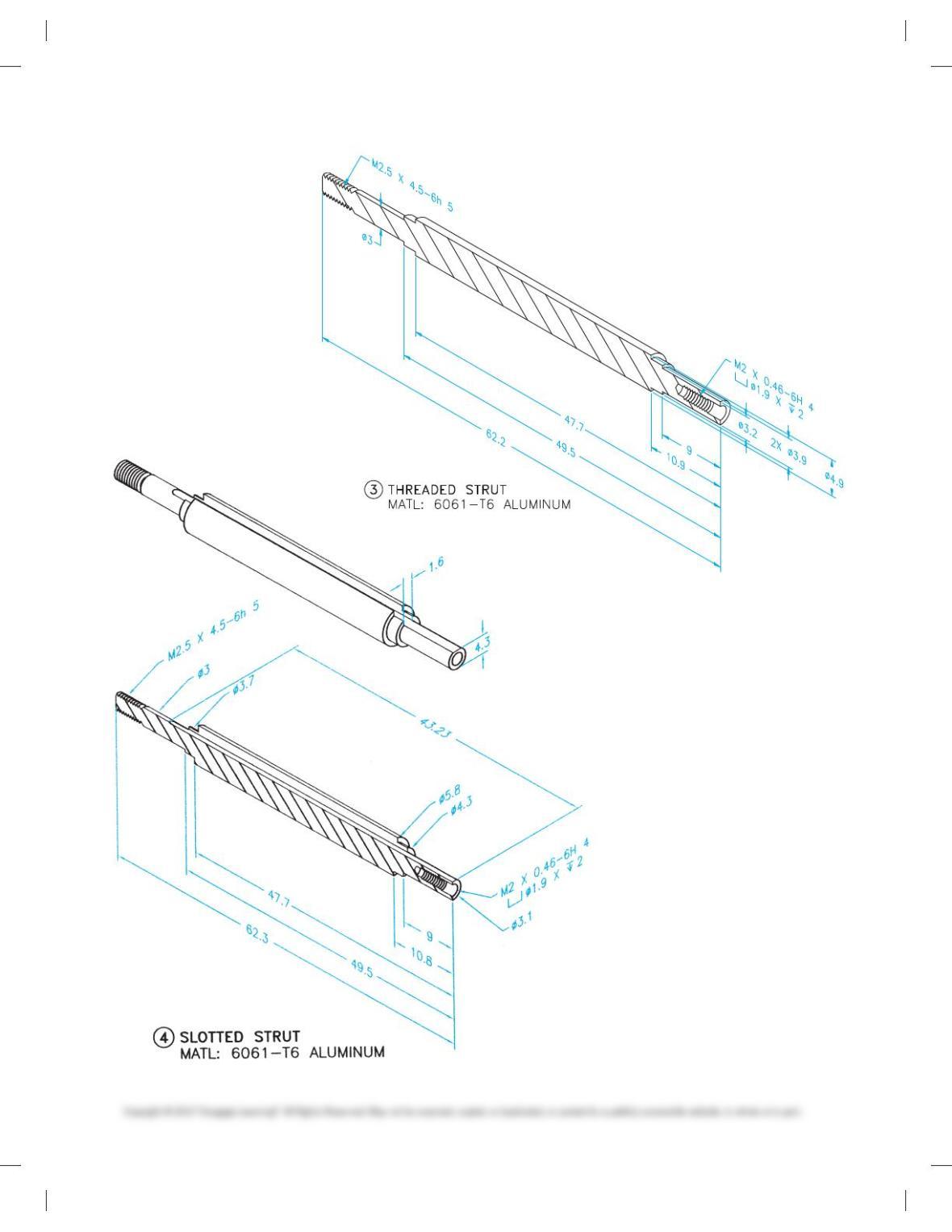

STRUT
SLOTTED STRUT
15 SPOOL FRAME RING (BACK)
FOOT
THREADED STRUT
59728_ch15_EOC_ptg01.indd 72 2/3/16 2:24 PM
73
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 73 2/3/16 2:24 PM
74
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 74 2/3/16 2:24 PM
75
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 75 2/3/16 2:24 PM
76
PROBLEM 15.24
(Continued)
1
1
QTY DESCRIPTIONITEM

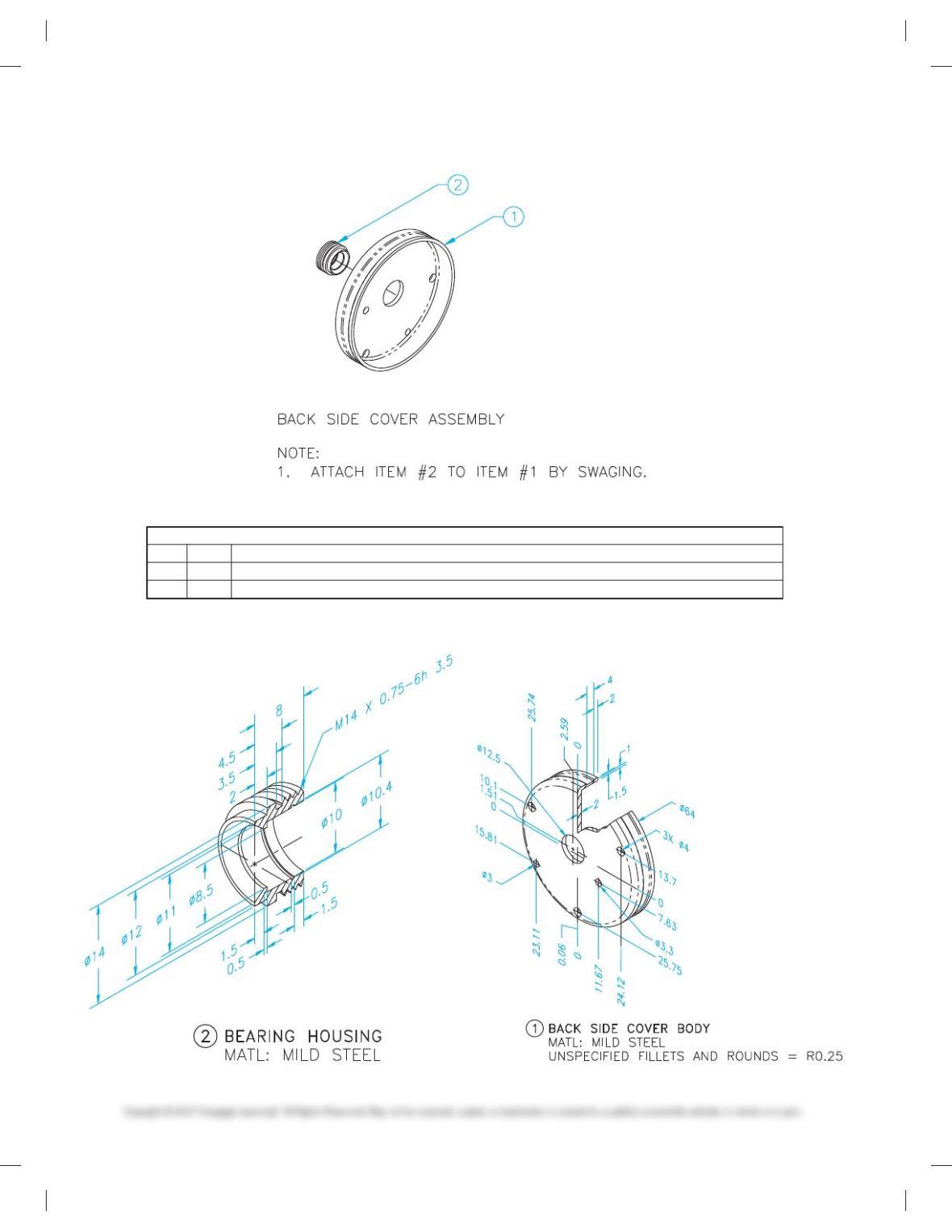

BACK SIDE COVER ASSEMBLY BILL OF MATERIALS
BACK SIDE COVER BODY1
2 BEARING HOUSING
BACK SIDE COVER ASSEMBLY
BACK SIDE COVER BILL OF MATERIALS
BACK SIDE COVER PARTS
59728_ch15_EOC_ptg01.indd 76 2/3/16 2:24 PM
77

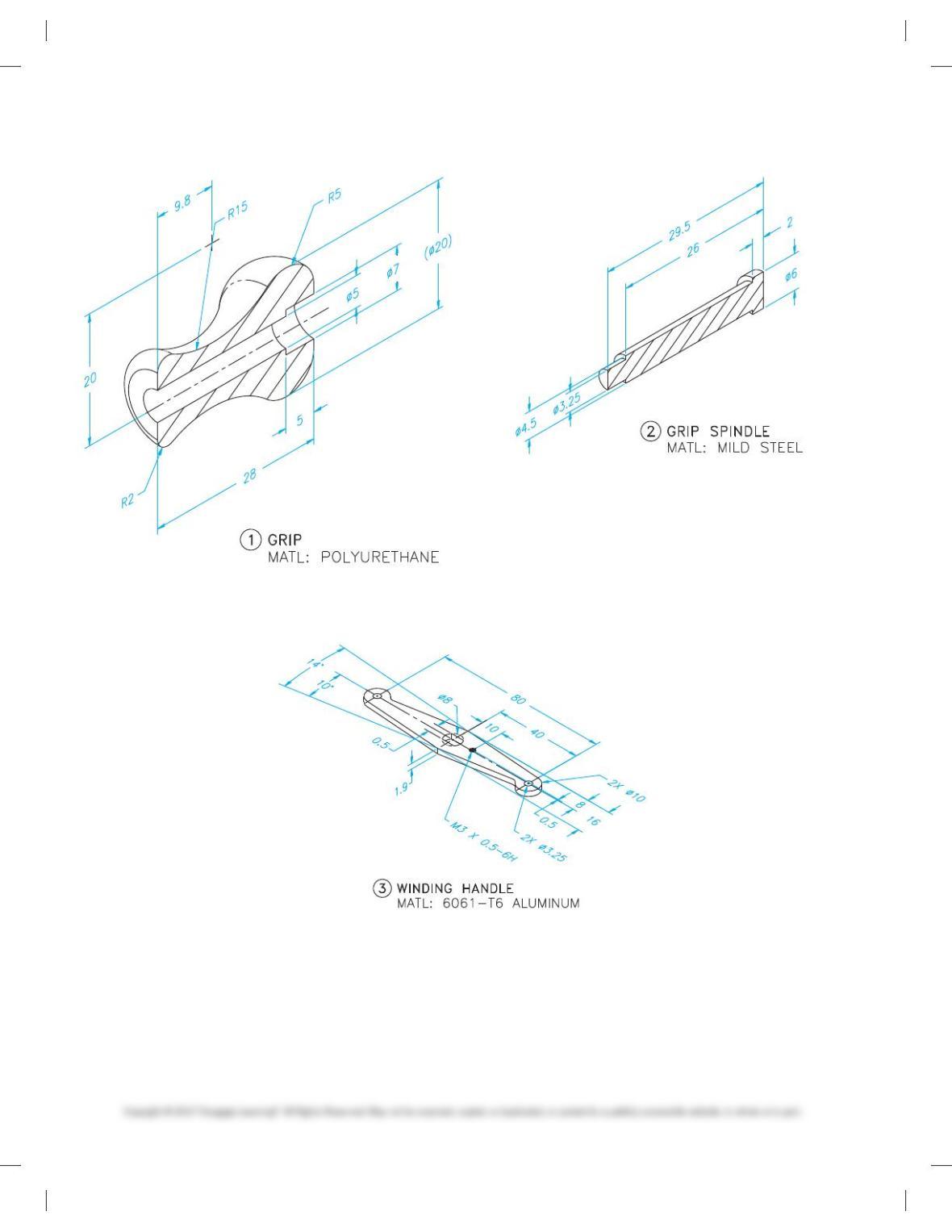

PROBLEM 15.24
(Continued)
2
2
1
QTY DESCRIPTIONITEM

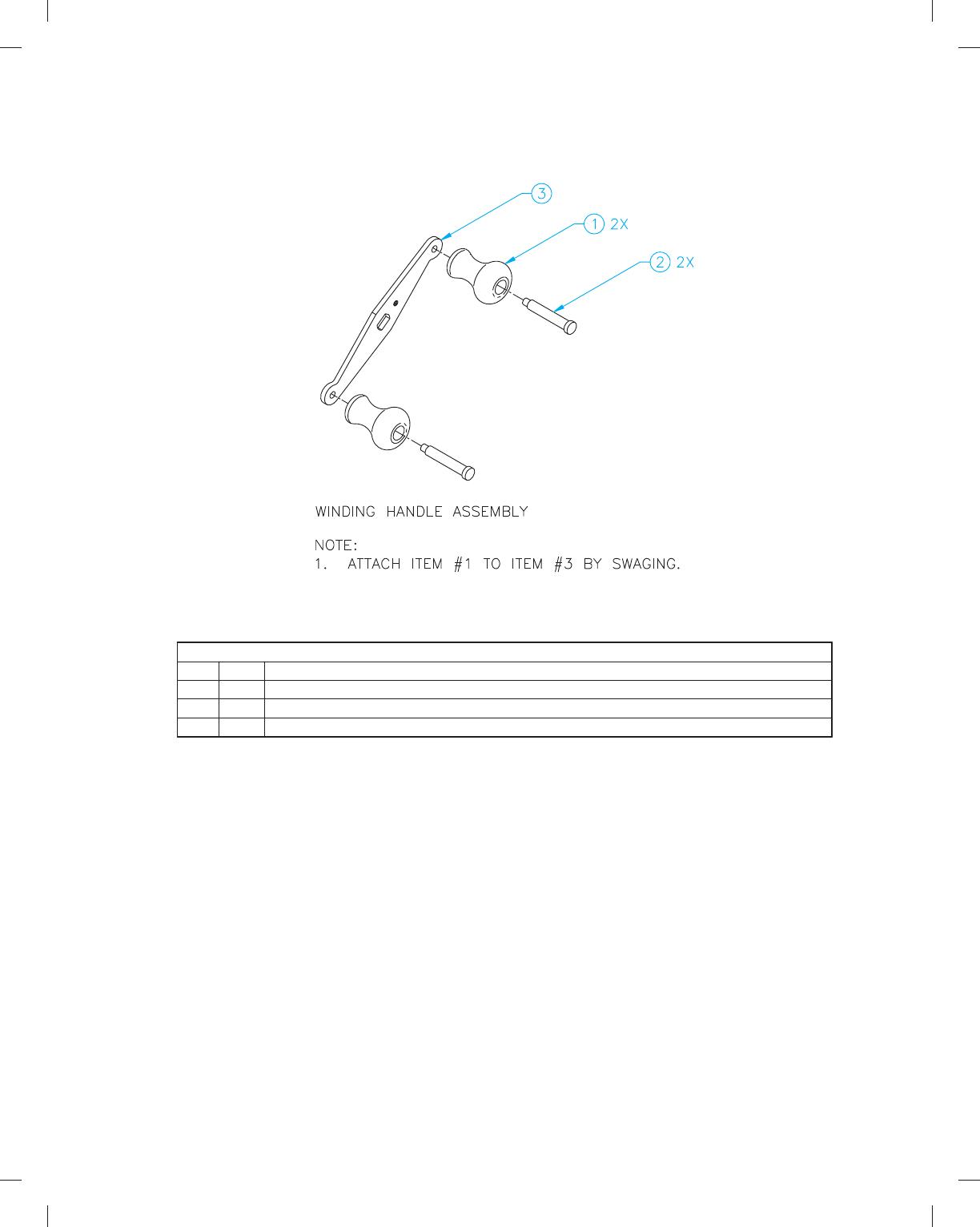

WINDING HANDLE ASSEMBLY BILL OF MATERIALS
GRIP1
2
3
GRIP SPINDLE
WINDING HANDLE
WINDING HANDLE ASSEMBLY
WINDING HANDLE BILL OF MATERIALS
59728_ch15_EOC_ptg01.indd 77 2/3/16 2:24 PM
78
PROBLEM 15.24
(Continued)
59728_ch15_EOC_ptg01.indd 78 2/3/16 2:24 PM
79
PROBLEM 15.24
(Continued)

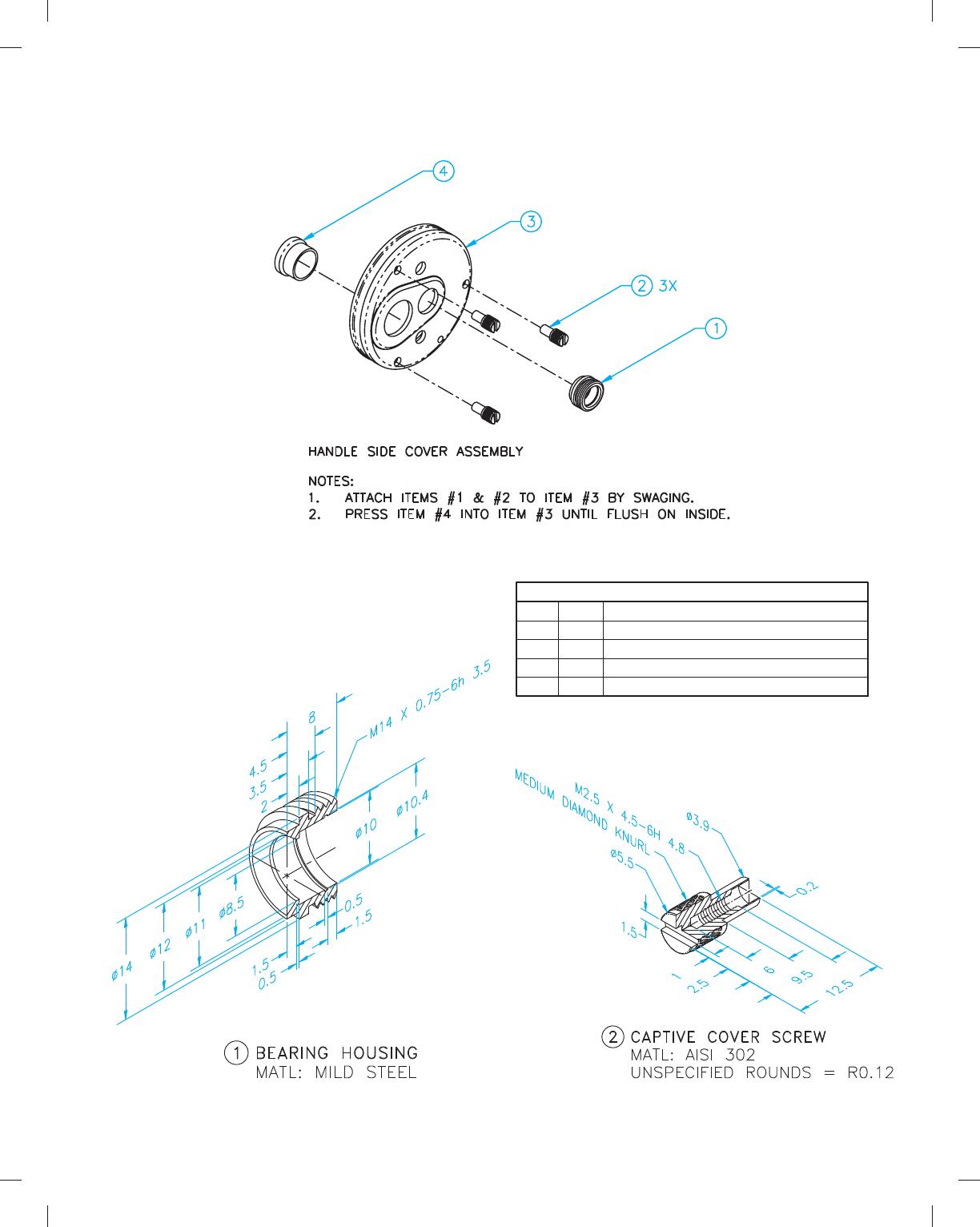

HANDLE SIDE COVER ASSEMBLY
1
3
1
1
QTY DESCRIPTION
HANDLE SIDE COVER ASSEMBLY BILL OF MATERIALS
ITEM
BEARING HOUSING1
2
3
4
COVER SCREW – CAPTIVE
COVER HANDLE PORT SLEEVE
HANDLE SIDE COVER BODY
HANDLE SIDE COVER BILL OF MATERIALS
HANDLE SIDE COVER
59728_ch15_EOC_ptg01.indd 79 2/3/16 2:24 PM

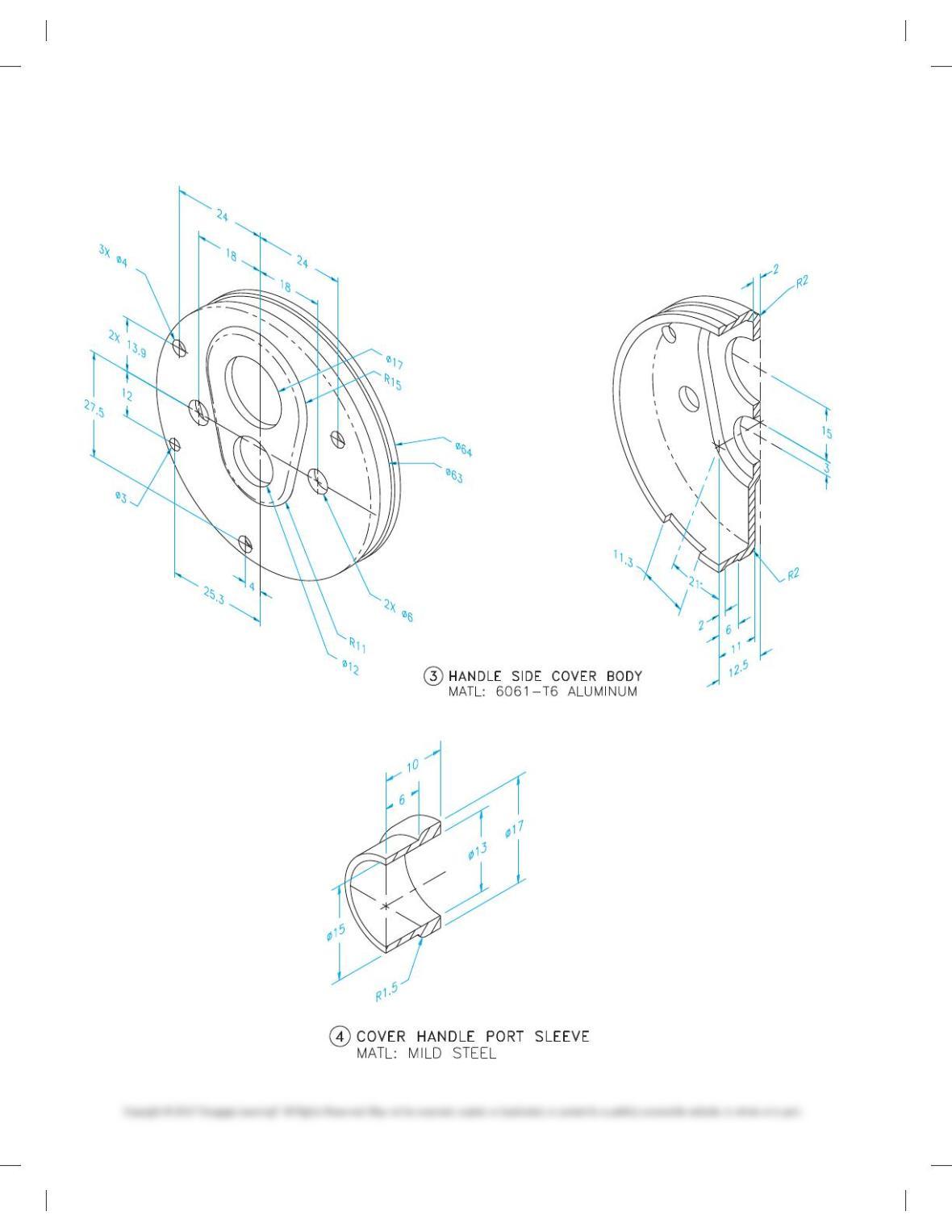

80
PROBLEM 15.24
(Continued)
