CHAPTER 16 EXTRACTION & OTHER SEPARATION SYSTEMS TEST
1. The Absorption Column in absorption and stripping does all the following
except: (Circle all that apply)
a. The liquid phase removes lighter components from the vapor phase.
b. One direction component removal.
c. Reverses absorption process.
d. Strips out hydrocarbons from absorption oil.
e. A & B
f. C & D
2. Adsorption is best described as:
a. To remove liquid hydrocarbons from the absorption oil.
b. Beadlike particles that contain charged ions on solid surfaces.
c. Removing the moisture content to .5%.
d. The process in which an impurity is removed from a process stream by
making it adhere to the surfaces of a solid.
3. A scrubber is best described as:
a. A device used to remove chemicals and solids fro process gases.
b. A device filled with a porous solid to remove gases and liquids from a
mixture.
c. A device used to remove selected components from a gas stream by
contacting it with a gas or liquid.
d. The second solution that forms a solvent to dissolve a solute.
4. Regeneration and drying is best defined as all of the following except:
a. In drying the removal of relatively small amounts of water or other liquids
from solids or gases.
b. Drying Is typically the final step in a series of operations.
c. Regeneration usually consists of two vessels (beds) containing a granular
solid.
d. In regeneration the solid is specifically chosen for its high adsorbency of
the target vapor and ease of regeneration.
e. In drying and regeneration dirty gases are absorbed into the liquid medium.
5. Extraction is defined as a process for separating two materials by:
a. contacting them with a third material
b. boiling point
c. forming a reaction
d. generating crystals
6. In extraction a solvent is a chemical that will:
a. initiate a reaction
b. boil the mixture
c. combine crystals
d. dissolve another chemical.
7. The ________ is the material that is dissolved in the extraction process.
a. solvent
b. solute
c. extract
d. raffinate

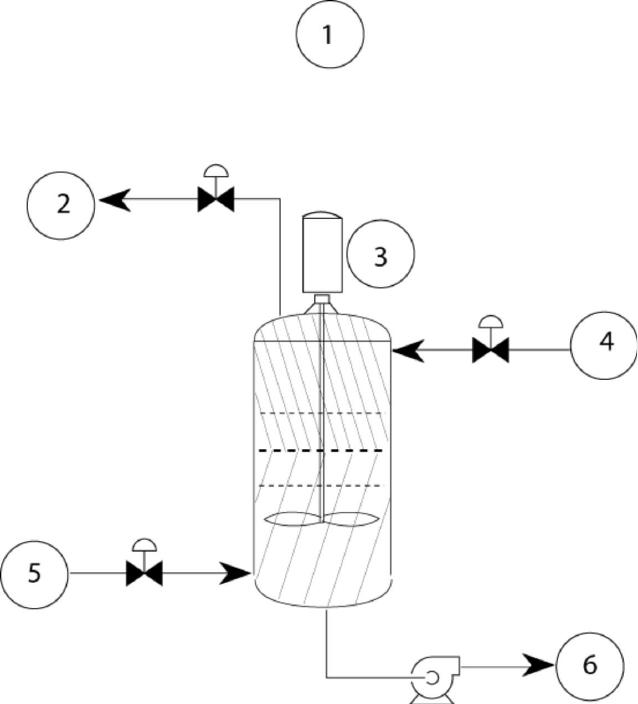

8. Identify the following components.
8-1 8-4
8-2 8-5
8-3 8-6
9. An absorber column is a device used to remove selected components from a gas
stream by:
a. contacting it with a gas or liquid
b. distilling it
c. reaction
d. steam stripping
10. Crystallization is often referred to as the opposite of what other common process?
a. distillation
b. dissolving
c. reaction
d. extraction

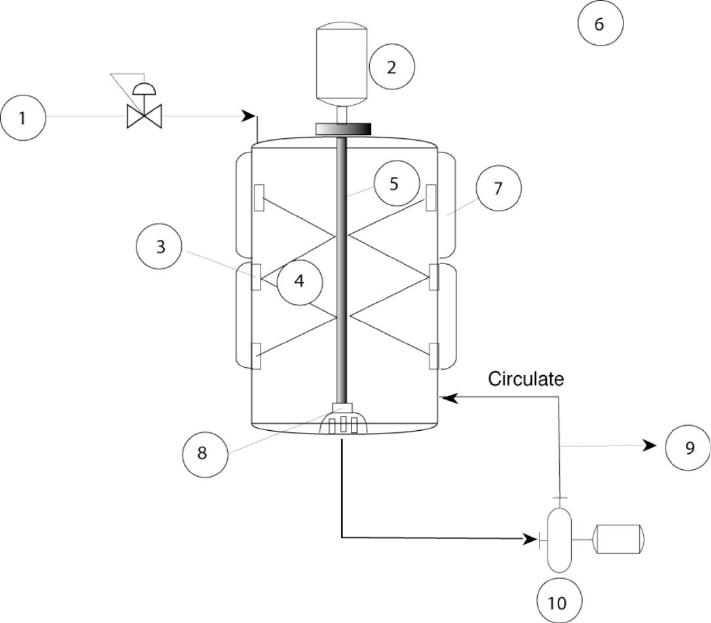

11. List the following components.
11-1 11-6
11-2 11-7
11-3 11-8
11-4 11-9
11-5 11-10
12. What does the term layer out mean?
a. reaction is complete
b. solids float to top
c. components in the mixture separate into distinct layers.
d. solids drop out

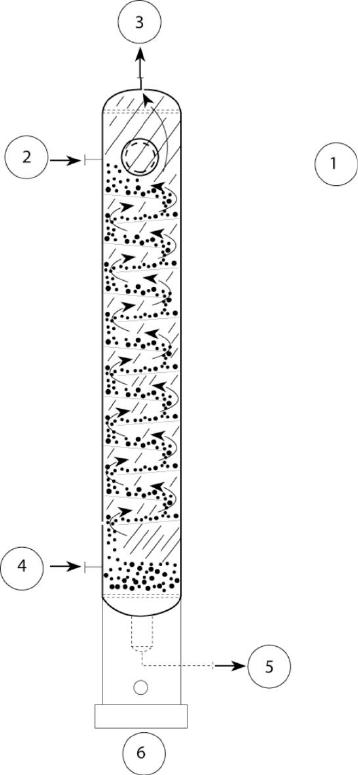

13. List the following components.
13-1
13-2
13-3
13-4
13-5
13-6

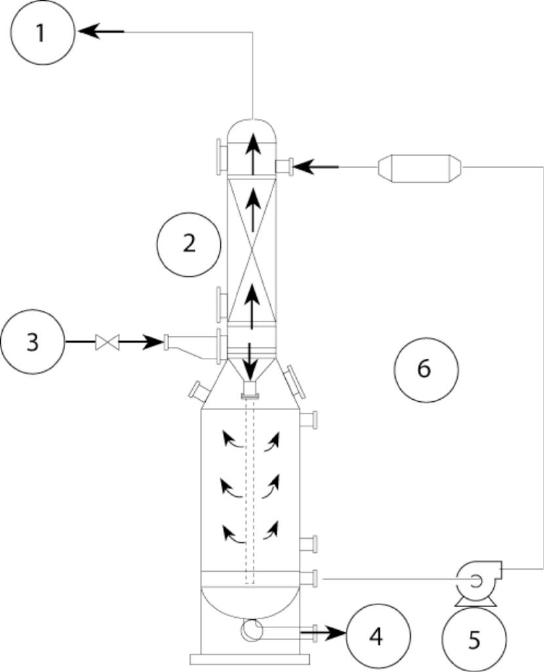

14. Label the following components.
14-1
14-2
14-3
14-4
14-5
14-6
15. Solvent dewaxing is defined as:
a. the removal of wax from lubricating oils.
b. The removal of solvent from lubricating oils.
c. The removal of water from hydrocarbons.
d. The blending of wax, solvent and light oils.

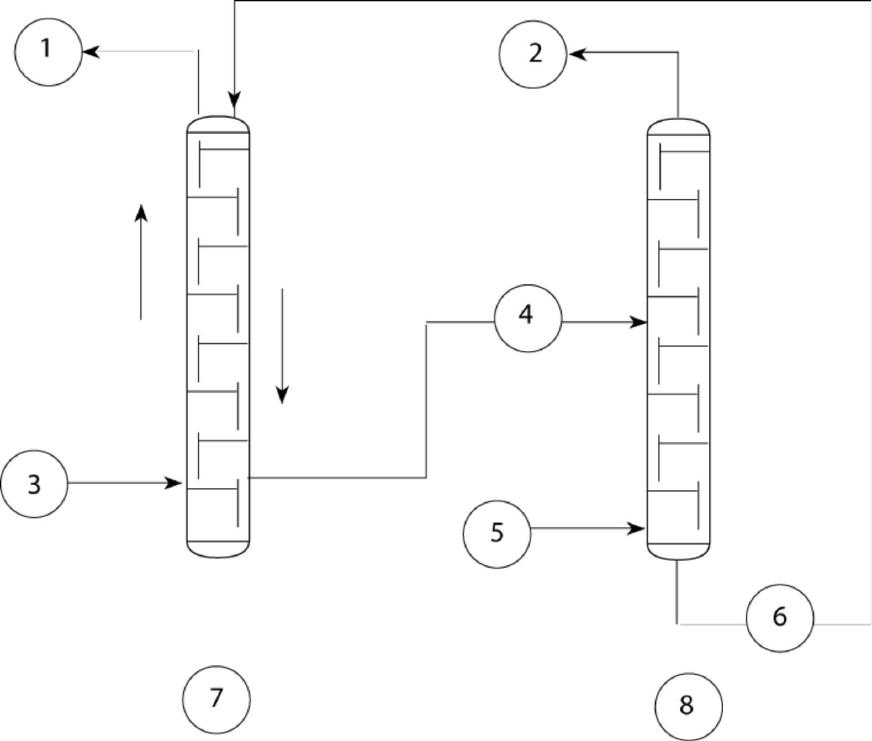

16. Label the following components.
16-1
16-2
16-3
16-4
16-5
16-6
16-7
16-8
17. There are three basic types of extraction:
a. liquid-solid, liquid-liquid, solvent
b. leeching, liquid-liquid, washing
c. liquid-liquid, distillation, reaction
d. centrifuge, organic, inorganic
18. In liquid-liquid extraction the ____ is the name given to the original solution.
a. feed
b. extract
c. raffinate
d. solvent
19. The ________ is the name given to the second solution that is formed when the
_________ dissolves the solute.
a. extract, solvent
b. raffinate, solvent
c. solvent, extract
d. raffinate, extract
20. What are the three main classifications of extraction columns?
a. packed, tray, mechanical
b. hyperbolic, atmospheric, packed
c. forced, induced, natural
d. reaction, mixing, mechanical
