Software Requirements
Specification
for
<IOT-CHALLAN SYSTEM>
Version <1.0>
Prepared by
Group Name:
MUHAMMAD AWAIS
19F-0920
F190920@nu.edu.pk
HANNAN
19F-1004
F191004@nu.edu.pk
Instructor:
MISS SABA GHANI
Course:
INTRIODUCTION TO SOFTWARE
ENGINEERING
Date:
3-07-20
Software Requirements Specification for <Notification Alert System> Page 2
Contents
CONTENTS Error! Bookmark not defined.
REVISIONS 3
1 INTRODUCTION Error! Bookmark not defined.
1.1 DOCUMENT PURPOSE Error! Bookmark not defined.
1.2 PRODUCT SCOPE Error! Bookmark not defined.
1.3 INTENDED AUDIENCE AND DOCUMENT OVERVIEW Error! Bookmark not defined.
1.4 DEFINITIONS, ACRONYMS AND ABBREVIATIONS 2
1.5 DOCUMENT CONVENTIONS 2
1.6 REFERENCES AND ACKNOWLEDGMENTS Error! Bookmark not defined.
2 OVERALL DESCRIPTION Error! Bookmark not defined.
2.1 PRODUCT OVERVIEW Error! Bookmark not defined.
2.2 PRODUCT FUNCTIONALITY 4
2.3 DESIGN AND IMPLEMENTATION CONSTRAINTS 16
2.4 ASSUMPTIONS AND DEPENDENCIES 17
3 SPECIFIC REQUIREMENTS 20
3.1 EXTERNAL INTERFACE REQUIREMENTS 20
3.2 FUNCTIONAL REQUIREMENTS 23
4 OTHER NON-FUNCTIONAL REQUIREMENTS 33
4.1 PERFORMANCE REQUIREMENTS 33
4.2 MAINTAINABILITY AND PORTABILITY REQUIREMENT 34
4.3 SECURITY REQUIREMENT 34
4.4 LEGAL REQUIREMENTS 35
5 OTHER REQUIREMENTS 35
APPENDIX A – GROUP LOG 36
List of figures
Fig 2.1
system use case
Fig 2.2
User use case
Fig 2.3
SSD of login
Fig 2.4
SSD of payment
Fig 2.5
SSD of challan generating
Fig 2.6
Class diagram of whole
system
Software Requirements Specification for <Notification Alert System> Page 3
Fig 2.7
CRC model of a system
Fig 2.8
Activity diagram of a system
Fig 3.1
O level
Fig 3.2
1 level
Fig 3.3
Sequence diagram
Fig 3.4
Domain model
Revisions
Primary Author(s)
Description of Version
Date Completed
MUHAMMAD
AWAIS
AND
HANNAN
This document consists of all information related
to our project. It consists of functional, non-
functional requirements with detailed description
and some other additional things
3/07/20
Software Requirements Specification for <Notification Alert System> Page 4
1 Introduction
Introduction
Today is an era of modern technology, each field of world struggling to improve itself day after day, due
to advancement in science and technology we are going to develop IOT –CHALLAN system based
application for students of NHA by using advance technology tools such as LIDAR GUN (light detection
and ranging speed gun ) to improve challan system.
IOT-challan system for NHA based on manually handing over challan work, this type of work often cause
delay receiving of information to the drivers. To have challan information quickly as possible among
driver and officer this application work well.
1.1 Document Purpose
As in the world of modern technology , developed IOT system and rising machine learning.it is
important to use technology in the department of high way security to gain accuracy and to save time
.as we know other countries like Dubai have well managed high way security system by the use of
technology ,auto detecting LIDAR gun and E-Challan system. Through this there will a time saving
activity in processes by the usage of the system.
1.2 Product Scope
The proposed system will be helpful at national and international level to maintain and manage the
security of the high ways and local transport system . IOT-challan system is an electronic format of
challan. An IOT-challan system can also be defined as a specific format used for depositing or remitting
the contribution or statutory payment by using M-tag and E-tag in Pakistan and by other ways at
international levels.
1.3 Intended Audience and Document Overview
Audience:
The roles and (if possible) names of other people and organizations who are affected by the product, or
whose input is needed in order to build the product.
Users
1. Officer
Project Supervisor Developer
Tester
Driver (driver who is driving the car )
Software Requirements Specification for <Notification Alert System> Page 5
Overview:
With built-in intelligent video analysis, Milesight LPR/ANR Network Cameras have the ability
to detect and recognize the moving vehicle’s plate number in the speed up to 120km/h. And
the recognition accuracy is more than 95%. So with the help of the LDR and internet or ay
communication medium our proposed system will work for you.
1.4 Definitions, Acronyms and Abbreviations
SRS: Software Requirements Specification
UR: User Requirement
DFD:Data Flow Diagram
DB: Database
UML: Unified Modelling Language
IEEE: Institute of Electrical and Electronic Engineering
1.5 Document Conventions
Font style: Time New Roman
Font size: 11-12 of paragraph
Heading size: 16-14
1.6 References and Acknowledgments
Author: lan Sommerville
Edition: Tenth Edition
Book name: Software Engineering
Author: Roger S. Pressman
Edition: Seventh Edition
Book name: Software Engineering a Practitioner’s Approach
Software Requirements Specification for <Notification Alert System> Page 6
2 Overall Description
2.1 Product Overview
With built-in intelligent video analysis, Milesight LPR/ANR Network Cameras have the ability
to detect and recognize the moving vehicle’s plate number in the speed up to 120km/h. And
the recognition accuracy is more than 95%. So with the help of the LDR and internet or ay
communication medium our proposed system will work for you.
2.2 Product Functionality
2.2.1 Product Boundary

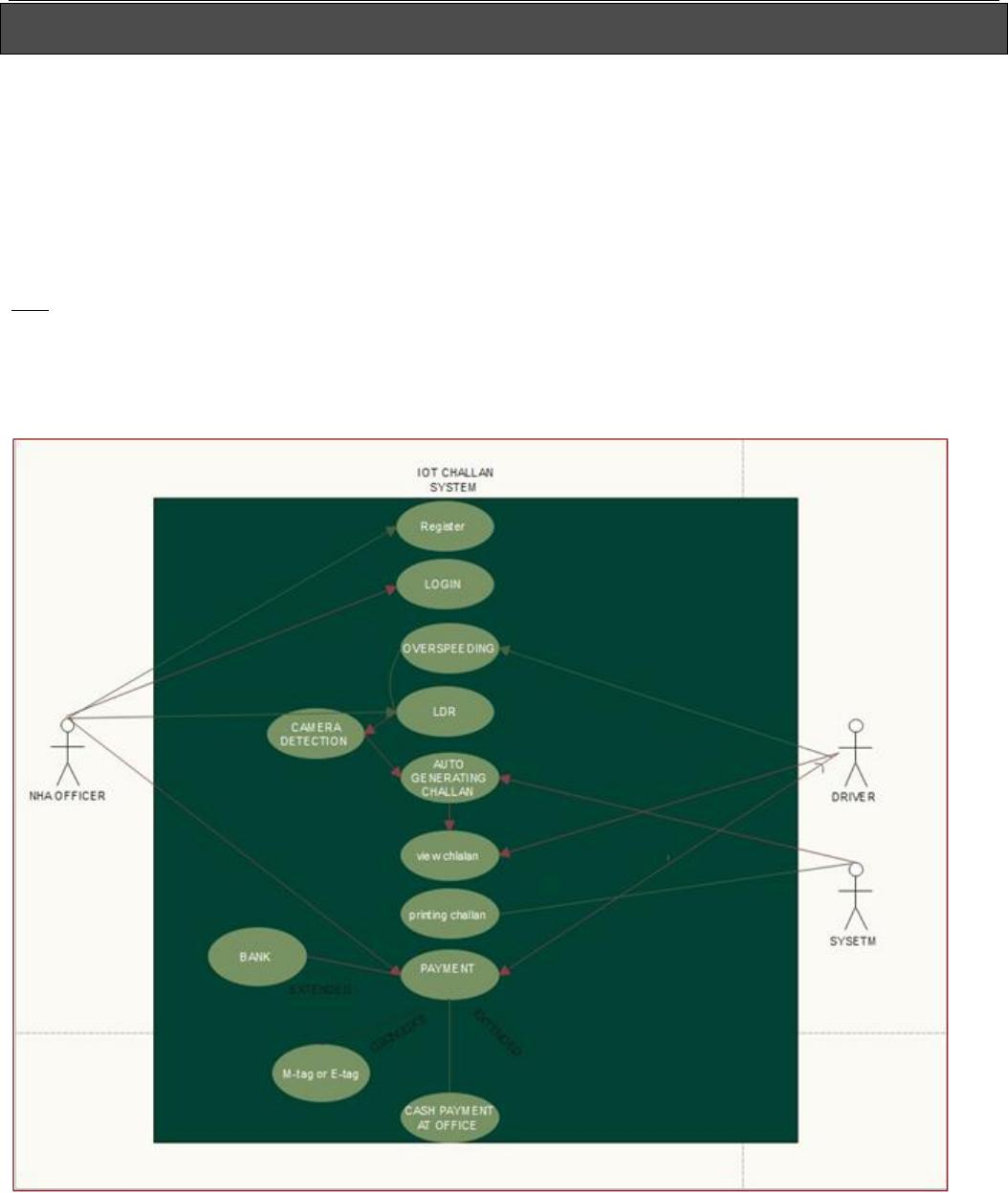

Fig 2.1 system use case
Software Requirements Specification for <Notification Alert System> Page 7
2.2.2 Use case list
Use
case
#.
Use case name
1
Sign up form
2
Login into the system
3
Over speeding .
4
Generating challan
5
View challan form
6
Challan payment
2.2.3 High Level use case
Use Case No #1
Use Case Id
U1
Use Case Name
Sign up form
Actor
NHA Officer
Description
Allow any officer of specific department to
access the system by signing up the desired
