Solutions to Chapter 3 Exercises

SOLVED EXERCISES

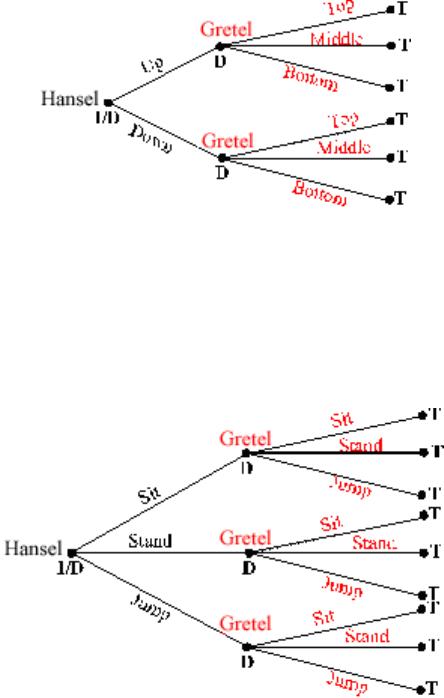

S1. (a) There is one initial node (I) for Hansel making the first move; three decision nodes (D)

including the initial node, which represent the points where either Hansel or Gretel make a decision; and

six terminal nodes (T):

(b) There is one initial node (I) for Hansel making the first move; four decision nodes (D)

including the initial node, which represent the nodes where Hansel or Gretel make a decision; and nine

terminal nodes (T):

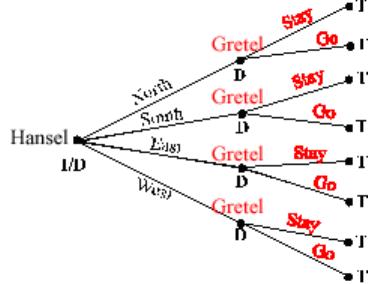

(c) There is one initial node (I) for Hansel making the first move; five decision nodes (D)

including the initial node, which represent the nodes where Hansel or Gretel make a decision; and eight

terminal nodes (T):

S2. For this question, remember that actions with the same label, if taken at different nodes, are

different components of a strategy. To clarify the answers, the nodes on the trees are labeled 1, 2, and so

forth (in addition to showing the name of the player acting there). Actions in a strategy are designated as

N1 (meaning N at node 1), and so forth. The trees are below in the solutions to Exercise S3. Numbering

of nodes begins at the far left and proceeds to the right, with nodes equidistant to the right of the initial

node and numbered from top to bottom.

(a) Scarecrow has two strategies: (1) N or (2) S. Tinman has two strategies: (1) t if

Scarecrow plays N, or (2) b if Scarecrow plays N.

(b) Scarecrow has two actions at three different nodes, so Scarecrow has eight strategies: 2 • 2 • 2

= 8. To describe the strategies accurately, we must specify a player’s action at each decision node.

Scarecrow decides at nodes 1, 3, and 5, so we will label a strategy by listing the action and the node

number. For example, to describe Scarecrow choosing N at each node, we write (N1, N3, N5).

Accordingly, the eight strategies for Scarecrow are (N1, N3, N5), (N1, N3, S5), (N1, S3, N5), (S1, N3,

N5), (N1, S3, S5), (S1, N3, S5), (S1, S3, N5), and (S1, S3, S5).

Tinman has two actions at three different nodes, so Tinman also has eight strategies: 2 • 2 • 2 = 8.

Tinman’s strategies are (n2, n4, n6), (n2, n4, s6), (n2, s4, n6), (s2, n4, n6), (n2, s4, s6), (s2, n4, s6), (s2,

s4, n6), and (s2, s4, s6).

(c) Scarecrow has two actions at three decision nodes, so Scarecrow has eight strategies: 2 •

2 • 2 = 8. Scarecrow’s strategies are (N1, N4, N5), (N1, N4, S5), (N1, S4, N5), (S1, N4, N5), (N1, S4,

S5), (S1, N4, S5), (S1, S4, N5), and (S1, S4, S5). Tinman has two strategies: (t2) and (b2). Lion has two

strategies: (u2) and (d2).

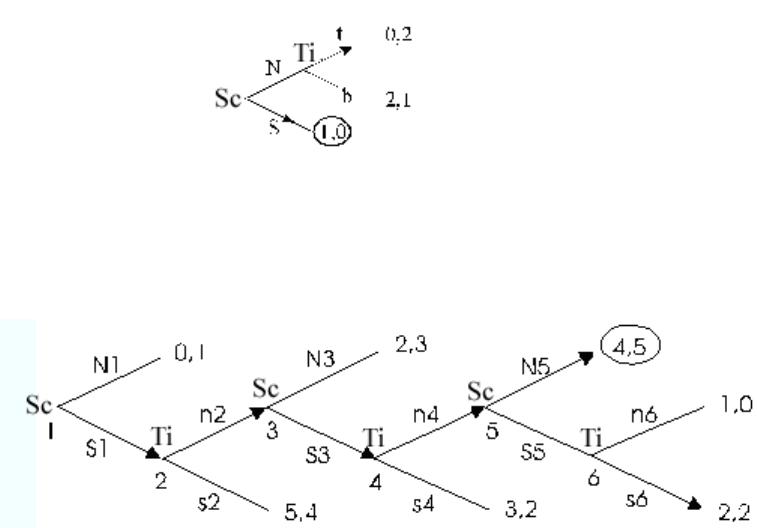

S3. (a) Beginning with Tinman, we see that Tinman prefers a payoff of 2 over 1, so Tinman

chooses t. With Tinman choosing t, Scarecrow receives a payoff of 0 for N and 1 for S, so Scarecrow

chooses S. Thus, the rollback equilibrium is Scarecrow’s choosing S and Tinman’s choosing t (even

though he won’t have a chance to play it). Tinman’s action does not affect the rollback equilibrium,

because Scarecrow expects Tinman to choose t, so Scarecrow best responds by choosing S:

(b) The graph below indicates which action Scarecrow and Tinman choose at each node.

Scarecrow’s equilibrium strategy is S1, S3, N5, and Tinman’s is n2, n4, s6, yielding the equilibrium

payoff (4, 5):

(c) The graph below indicates which action Scarecrow, Tinman, and Lion choose at each

node. Scarecrow’s equilibrium strategy is N1, N4, N5; Tinman’s is b; and Lion’s is d, yielding the payoff

(2, 3, 2):

S4. The game tree is shown below:

Boeing prefers $300 million to losing $100 million, so Boeing will peacefully accommodate Airbus’s

entry into the market. Airbus expects Boeing to accommodate its entry peacefully, so it can make $300

million by entering, or nothing by not entering, so Airbus will enter the market. Thus, the rollback

equilibrium is Airbus’s entering the market and Boeing’s peacefully accommodating, with a payoff to

each firm of $300 million in profit.

S5. (a) For Barney to win the game, he must remove the last matchstick, which means that if he
