Engineering Statics – MECH 223
Review Problems for the Final Exam – Set 2

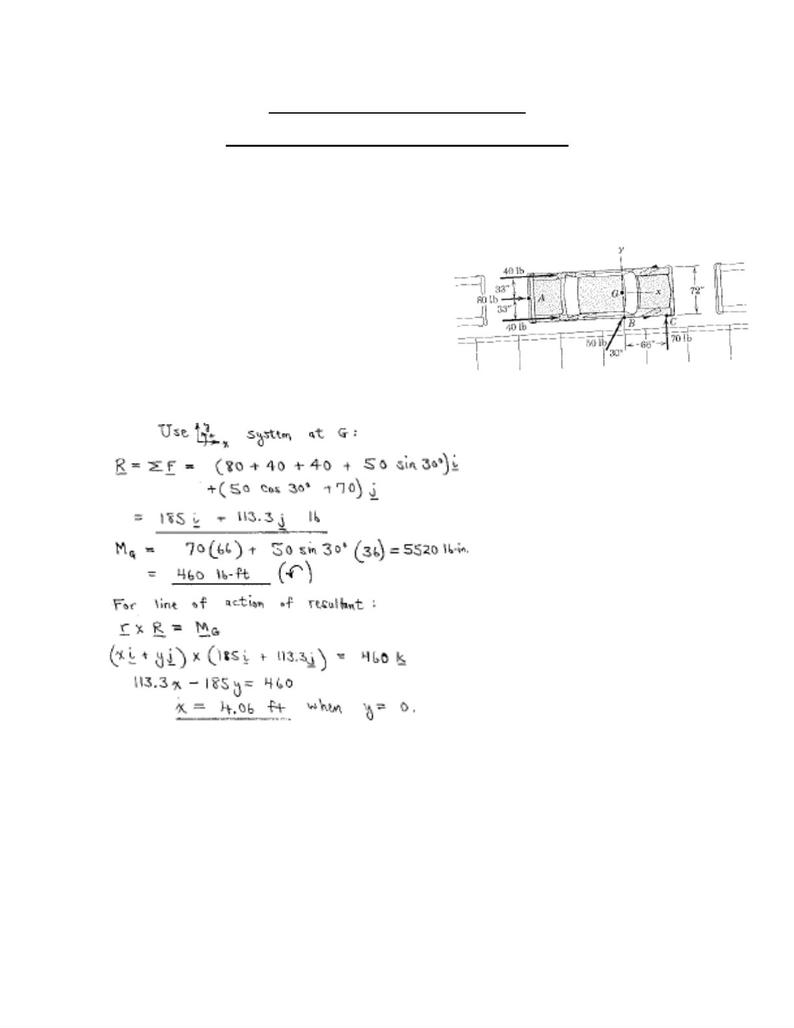

1. A rear-wheel-drive car is stuck in the snow between other parked cars as shown. In an
attempt to free the car, three students exert forces on the car at points A,B and C while the
driver’s actions result in a forward thrust of
40 lb acting parallel to the plane of rotation
of each rear wheel. Treating the problem as
two-dimensional, determine the equivalent
force-couple system at the car center of mass
G, and locate position x of the point on the
car centerline through which the resultant
passes. Neglect all forces not shown.
Solution:

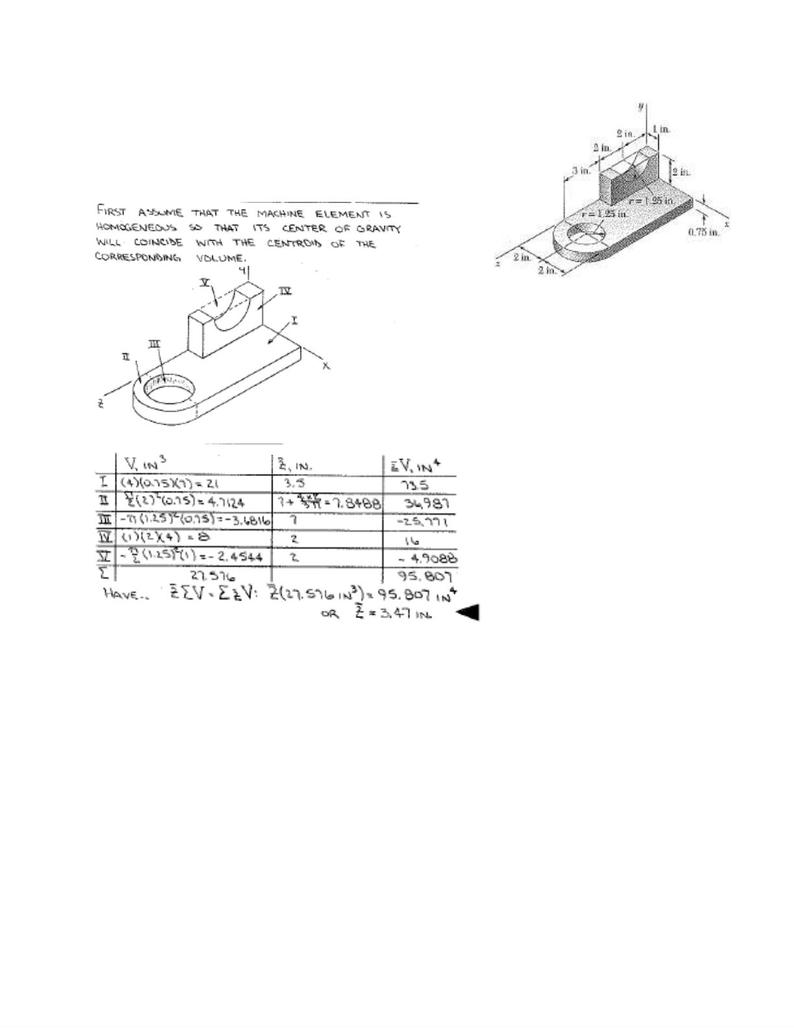

2. For the machine element shown, locate the z
coordinate of the center of gravity.
Solution:
