Engineering Statics – MECH 223
Review Problems for the Final Exam – Set 1 (bonus for submission)

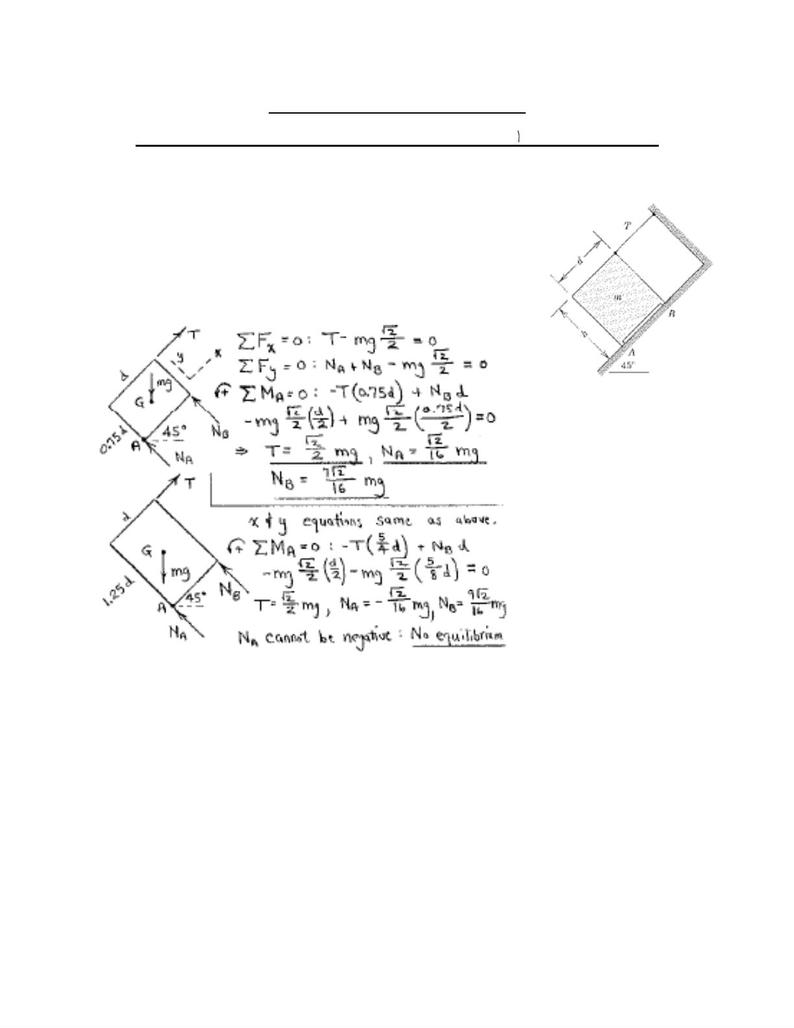

1. Determine the tension T in the cable and the reactions at A
and B for the cases (a) h=0.75d and (b) h=1.25d. The object
of mass m is homogeneous and the feet are small. Friction is
negligible (Caution: Ensure that equilibrium is possible in
each case).
Solution:

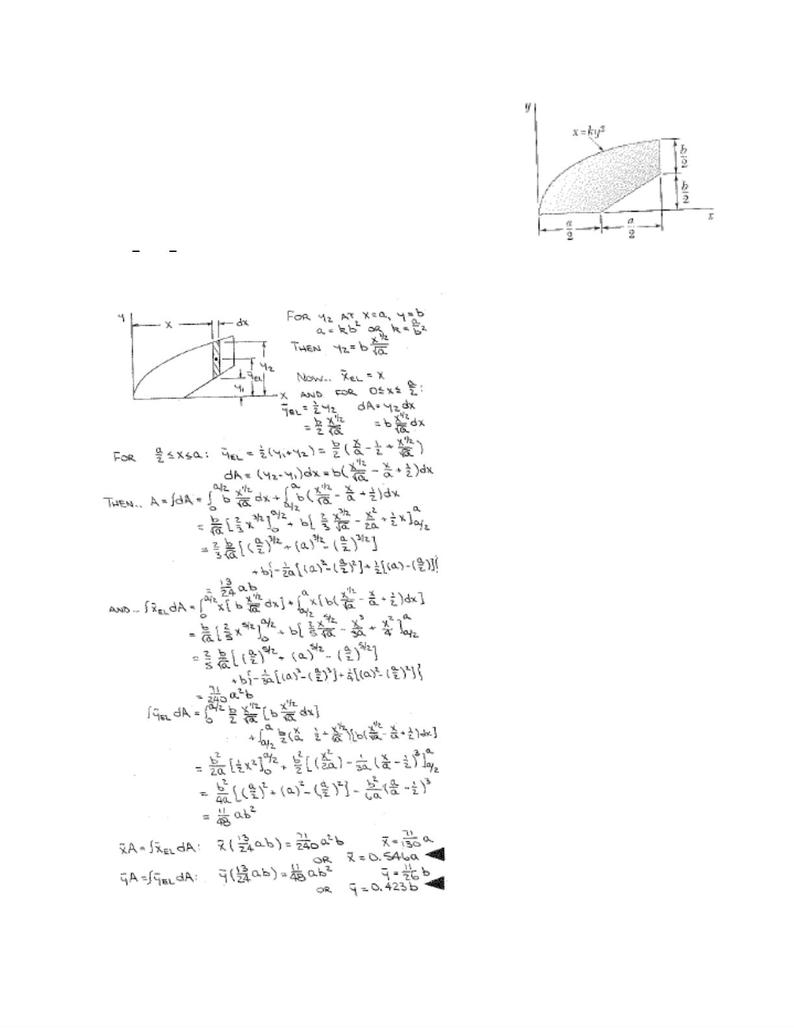

2. Determine by direct integration the centroid of the area
shown. Express your answer in terms of a and b. (The
formula for the upper line is x=ky2).
Solution:
The formula for the straight line (bottom border) is
𝑦1=𝑏
𝑎𝑥 − 𝑏
2
